Product Overview

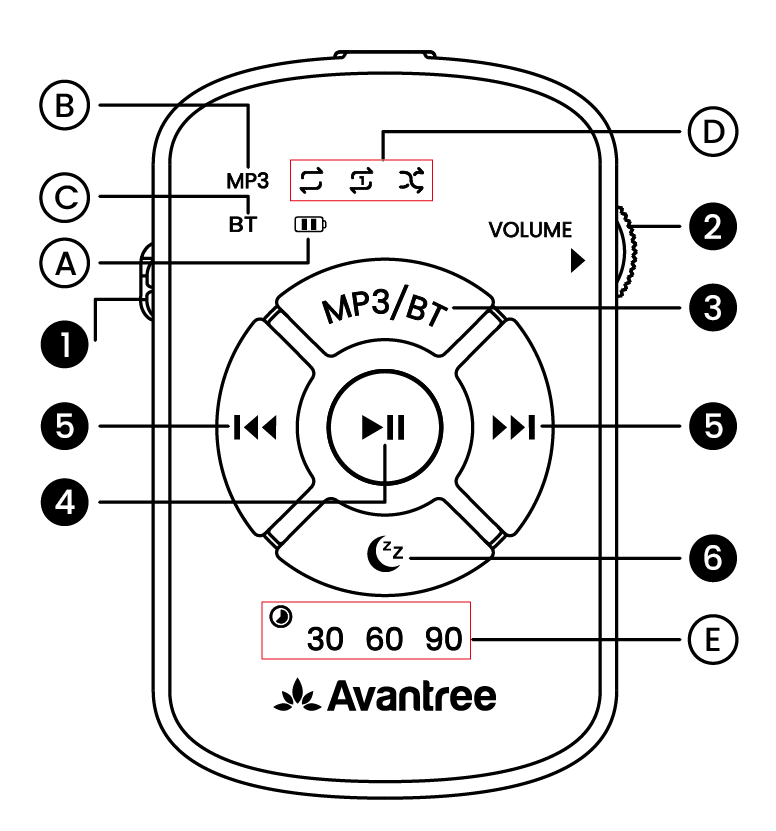

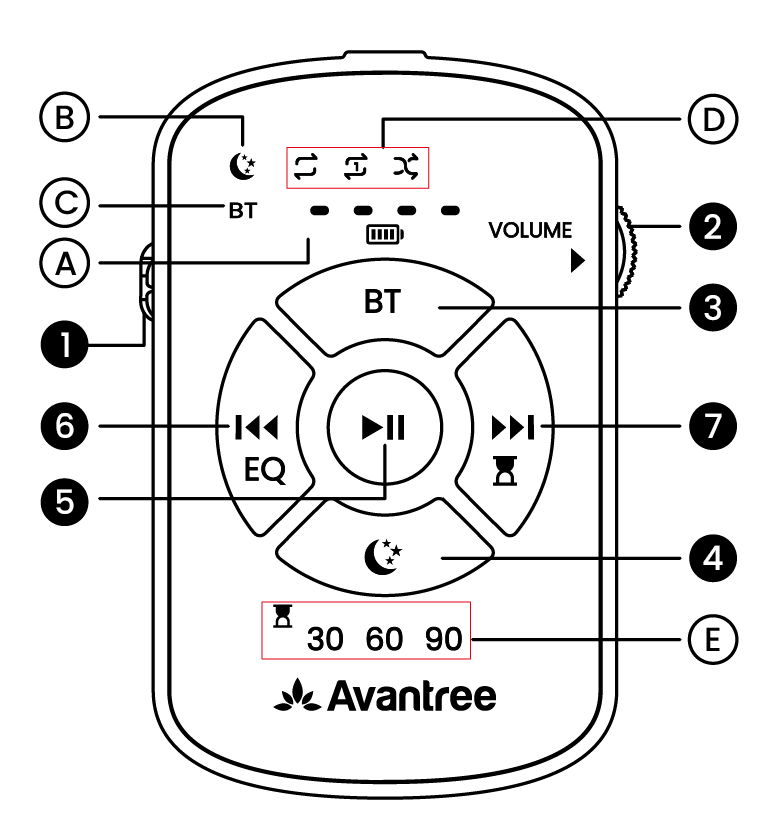

Version A
Button Functions
| No. | Button | Function |
| ① | Slide the switch to turn the remote on or off | |
| ② | Slide the scroll wheel to increase or decrease volume | |
| ③ | BT | Press once to switch to Bluetooth (BT) mode |
| In BT mode, press & hold for 3 seconds to enter pairing mode | ||
| ④ | Press once to switch to White Noise mode | |
| In | ||
| ⑤ | Press once to play / pause | |
| ⑥ | Press once to replay track | |
| Hold for 5 seconds to switch between Balanced and Voice Clear modes | ||
| Press & hold both | ||
| ⑦ | Press once to skip track | |
| Press once to set a sleep timer (30 / 60 / 90 minutes) or to cancel it |
LED Indicators
| No. | Indicator | Status |
| A | Flashing white | Charging |
| LED off | Fully charged or power off | |
| Left LED flashes white | Low battery | |
| B | Solid white | White Noise mode |
| C | Solid blue | BT mode |
| Flashing red & blue | Enter pairing mode | |
| D | Solid white | Select ordered / single cycle / shuffle playback mode |
| E | Solid white | Activate 30 / 60 / 90-minute sleep timer |

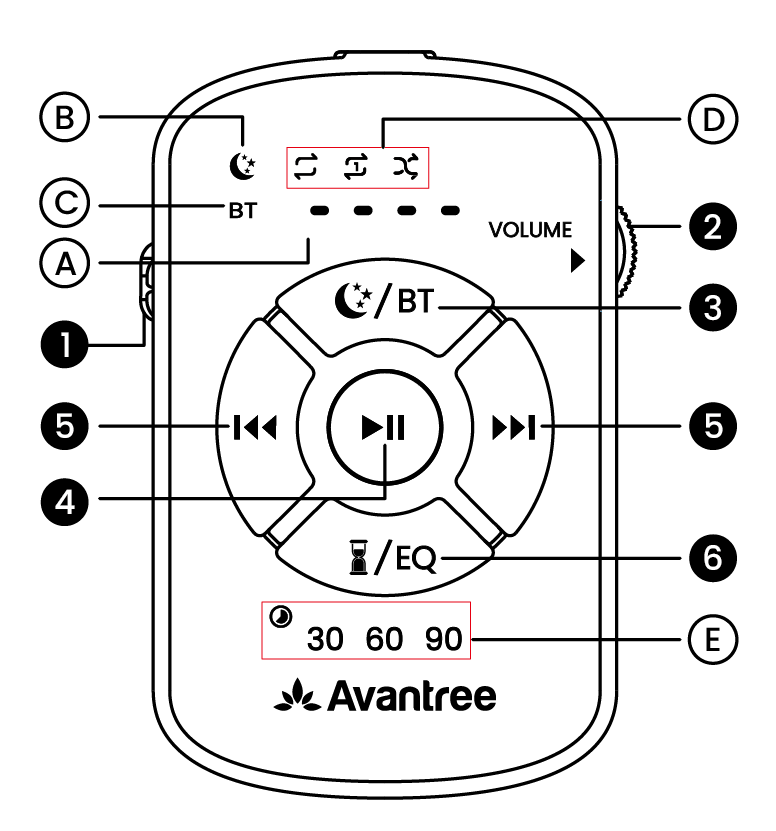

Version B
Button Functions
| No. | Button | Function |
| ① | Slide the switch to turn the remote on or off | |
| ② | Slide the scroll wheel to increase or decrease volume | |
| ③ | Press once to switch between White Noise & Bluetooth (BT) modes | |
| In BT mode, press & hold for 3 seconds to enter pairing mode | ||
| In | ||
| ④ | Press once to play / pause | |
| ⑤ |
| Press once to skip / replay track |
| Press & hold both buttons for 10 seconds to clear pairing history | ||
| ⑥ | Press once to set a sleep timer (30 / 60 / 90 minutes) or to cancel it Hold for 5 seconds to switch between Balanced and Voice Clear modes |
LED Indicators
| No. | Indicator | Status |
| A | Flashing white | Charging |
| LED off | Fully charged or power off | |
| Left LED flashes white | Low battery | |
| B | Solid white | White Noise mode |
| C | Solid blue | BT mode |
| Flashing red & blue | Enter pairing mode | |
| D | Solid white | Select ordered / single cycle / shuffle playback mode |
| E | Solid white | Activate 30 / 60 / 90-minute sleep timer |
