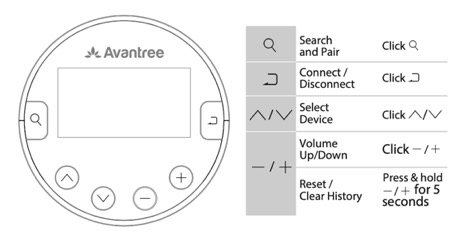

Buttons

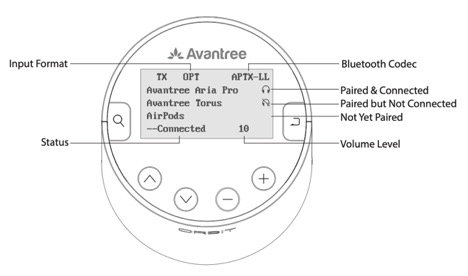

Indicators

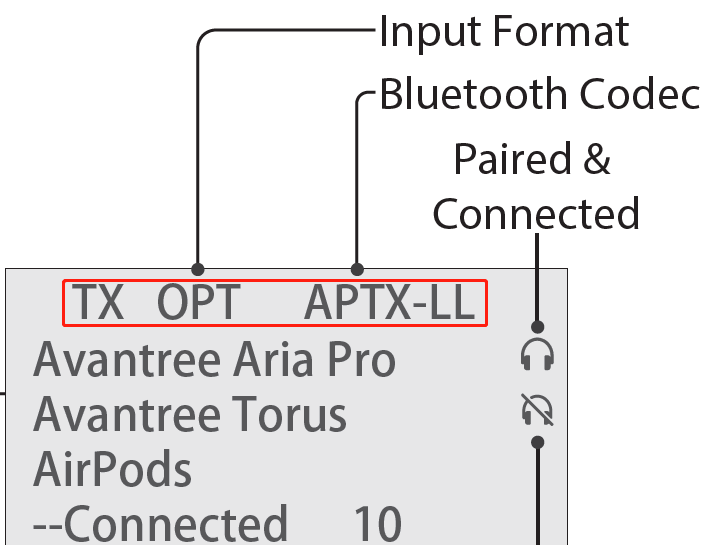

1. TOP of the Screen
Left: TX (Transmitter)
Middle: OPT / AUX / MIC (Audio Input Channel)
Right: SBC / FS / aptX LL... -> (Bluetooth Codec Connected)
More details about Wireless Audio Delay of different Codec

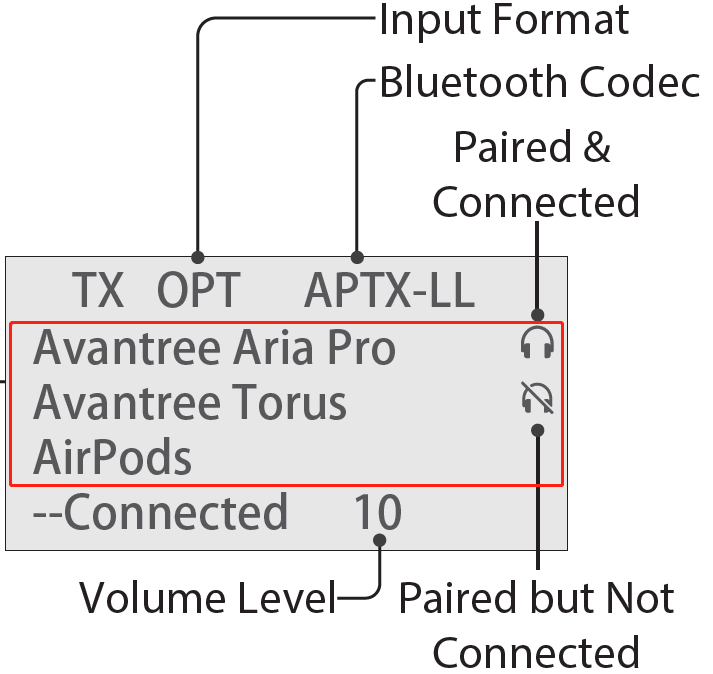

2. Middle of the Screen
Found devices and connecting status

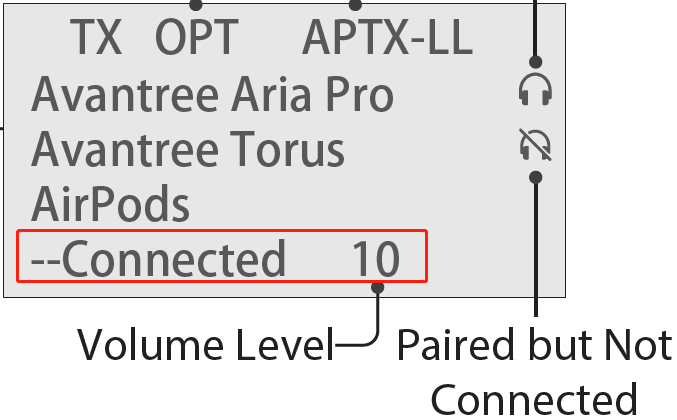

3. Bottom of the Screen
Left: Operating Status: Searching..., Connected Right: Volume Level

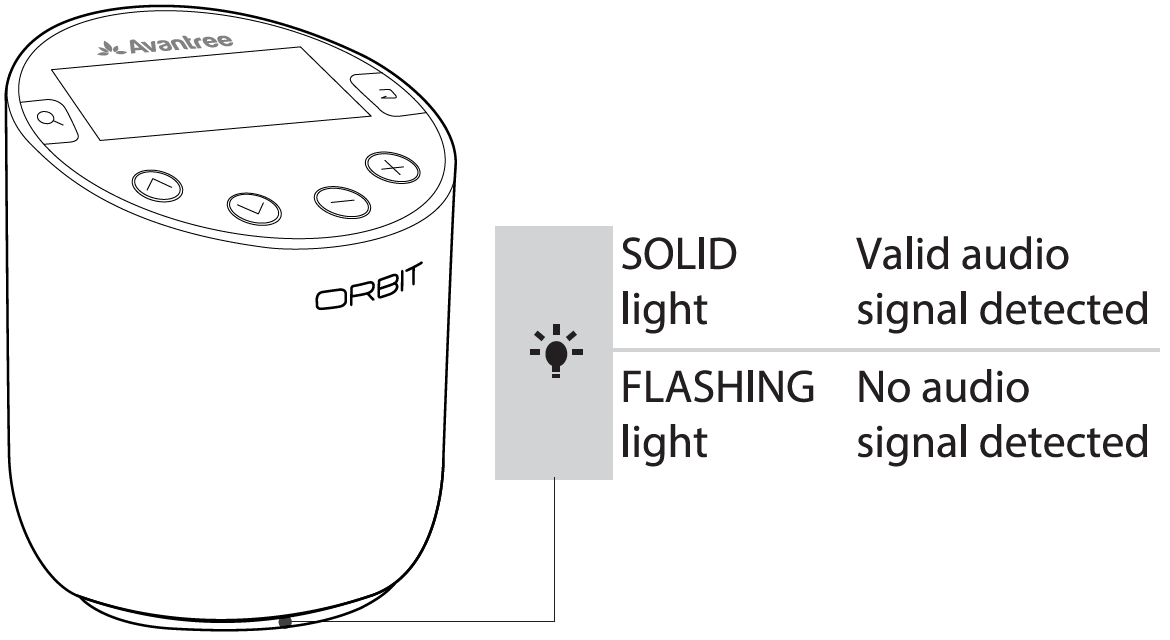

Bottom LED Light Indicator
Solid Blue Light -> Connected with Valid Audio Signal
LED Light Flashing -> Input Signal Invalid
