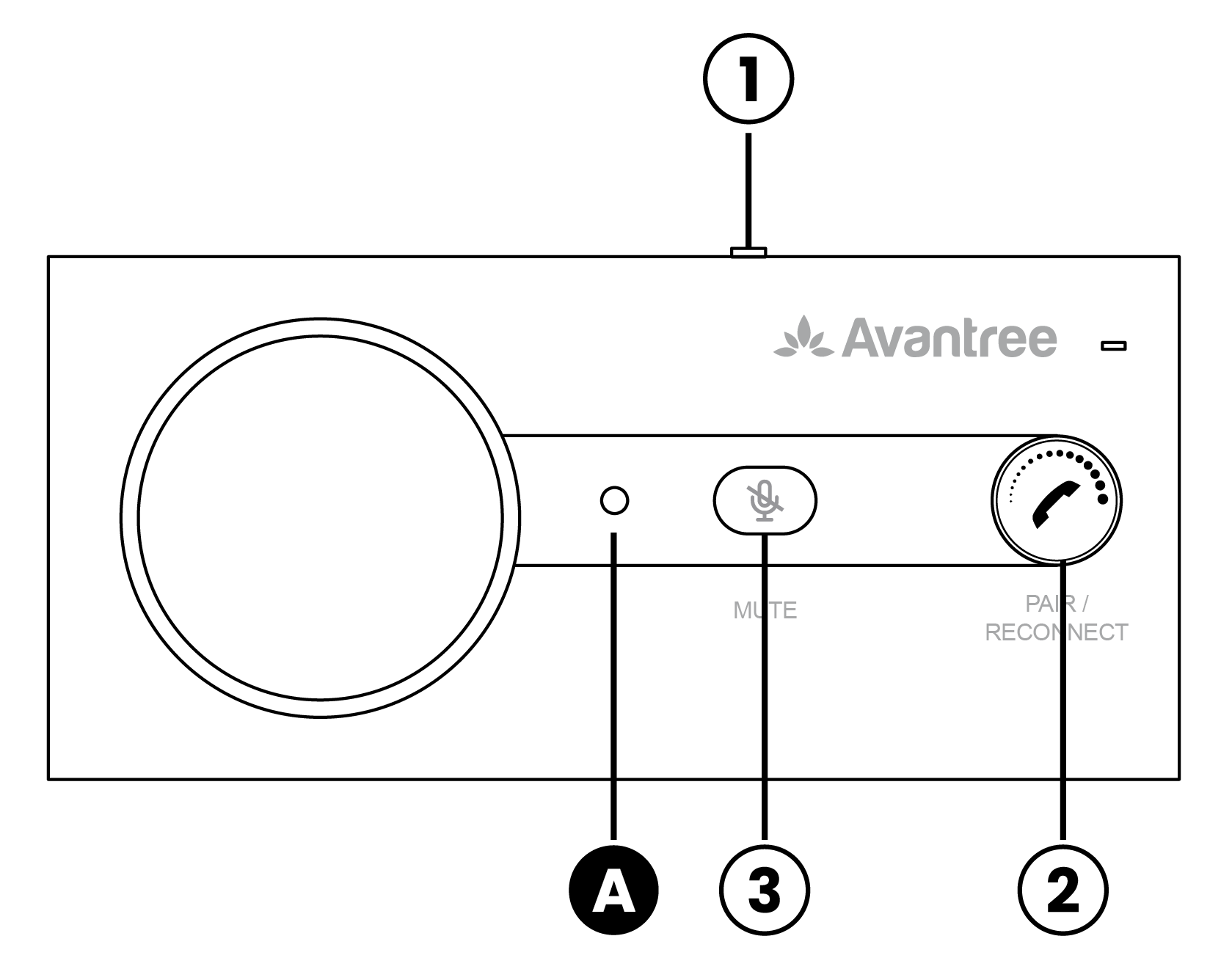

Product Overview
Button Functions
| No. | Button | Function |
| ① | Slide to ON / OFF to power CK11 on or off | |
| ② |
- Rotate clockwise or anticlockwise to increase or decrease volume - Press once to answer / end a call - Press & hold for 1s to reject a call - Double-press to redial - Press once to activate voice control (phone feature) - Press & hold for 3s to enter pairing mode - Press once to manually re-connect |
|
| ③ | Press once to mute / unmute the microphone (during a call) |
LED Indicators
| No. | Indicator | Meaning |
| A | Blue LED on 1s | Power on |
| Red LED on 1s | Power off | |
| LED flashes blue every 5s | Connected | |
| Solid blue | Disconnected | |
| Flashing red & blue | Pairing mode | |
| LED flashes red every 5s | Low battery | |
| Solid red | Charging | |
| LED off | Fully charged or power off |
Note 1: When the microphone is muted, please be aware that the speakers may still be on.
Note 2: Please configure your iPhone, enabling in-call audio to route to the CK11 by default even when answering the call from your phone.
