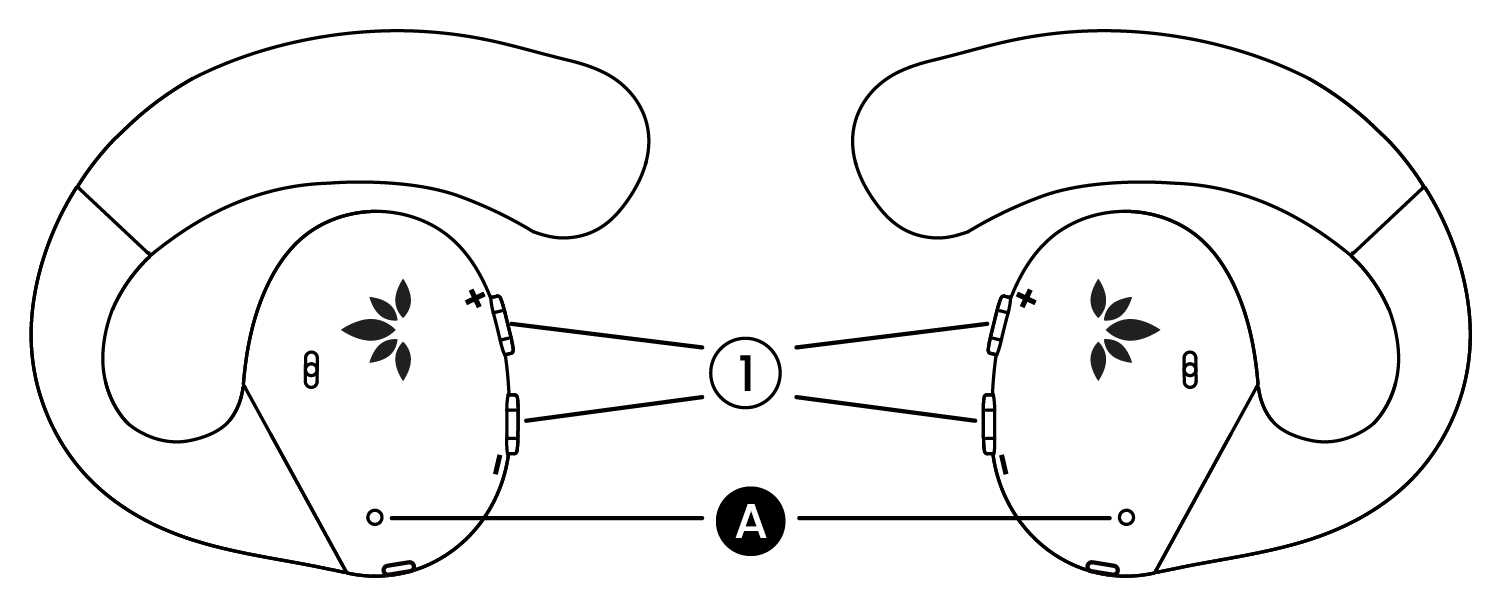

Product Overview (Headphones)
Button Functions
| No. | Buttons | Functions |
①
| Volume +/- | Short-press volume "+" to power on |
| Press volume "+" / "−" to increase/decrease the volume | ||
| Double-press volume "+" / "−" to answer / end a call | ||
| Press & hold volume "+" / "−" for 1s to reject a call | ||
| Press & hold volume "+" for 5s to enter Bluetooth pairing mode | ||
| Press & hold volume "−" for 5s to enter Auracast searching mode | ||
| Press & hold both volume "+" and "−" for 5s to clear pairing history |
LED Indicators
No. | Indicators | Status |
A | Solid blue for 1s | Power on |
| Solid red for 1s, then off | Power off | |
| Flashes red & blue alternately | Pairing | |
| Solid blue for 3s, then off | Bluetooth Connected | |
| Solid orange for 3s, then off | Auracast joined | |
| Solid red | Charging | |
| LED Off | Fully charged |

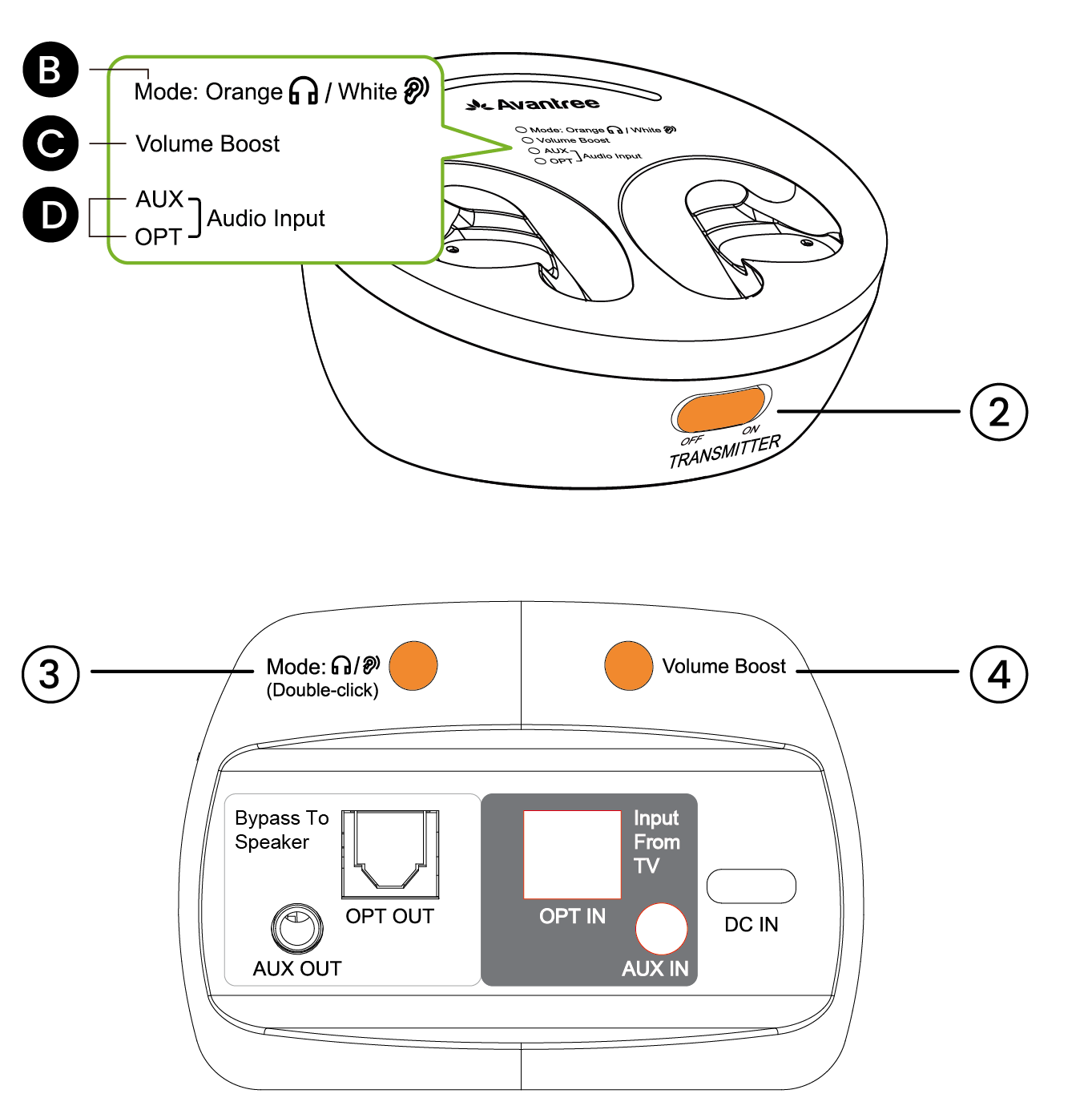

Product Overview (Transmitter & Charging Dock)
Button Functions
No. | Buttons | Functions |
② | ON / OFF | Switch to "ON" position to turn the transmitter on |
| Switch to "OFF" position to turn the transmitter off | ||
③ | Mode switch | Double-click to switch between Bluetooth headphones mode and Auracast hearing aids mode |
④ | Volume Boost | Press once to turn on Volume Boost |
LED Indicators
No. | Indicators | Status |
B | Orange | Switch to Bluetooth headphones mode |
| White | Switch to Auracast hearing aids mode | |
C | Solid white | Volume Boost ON |
D | Solid white | Valid audio signal |
| Flashes white | Invalid audio signal |
