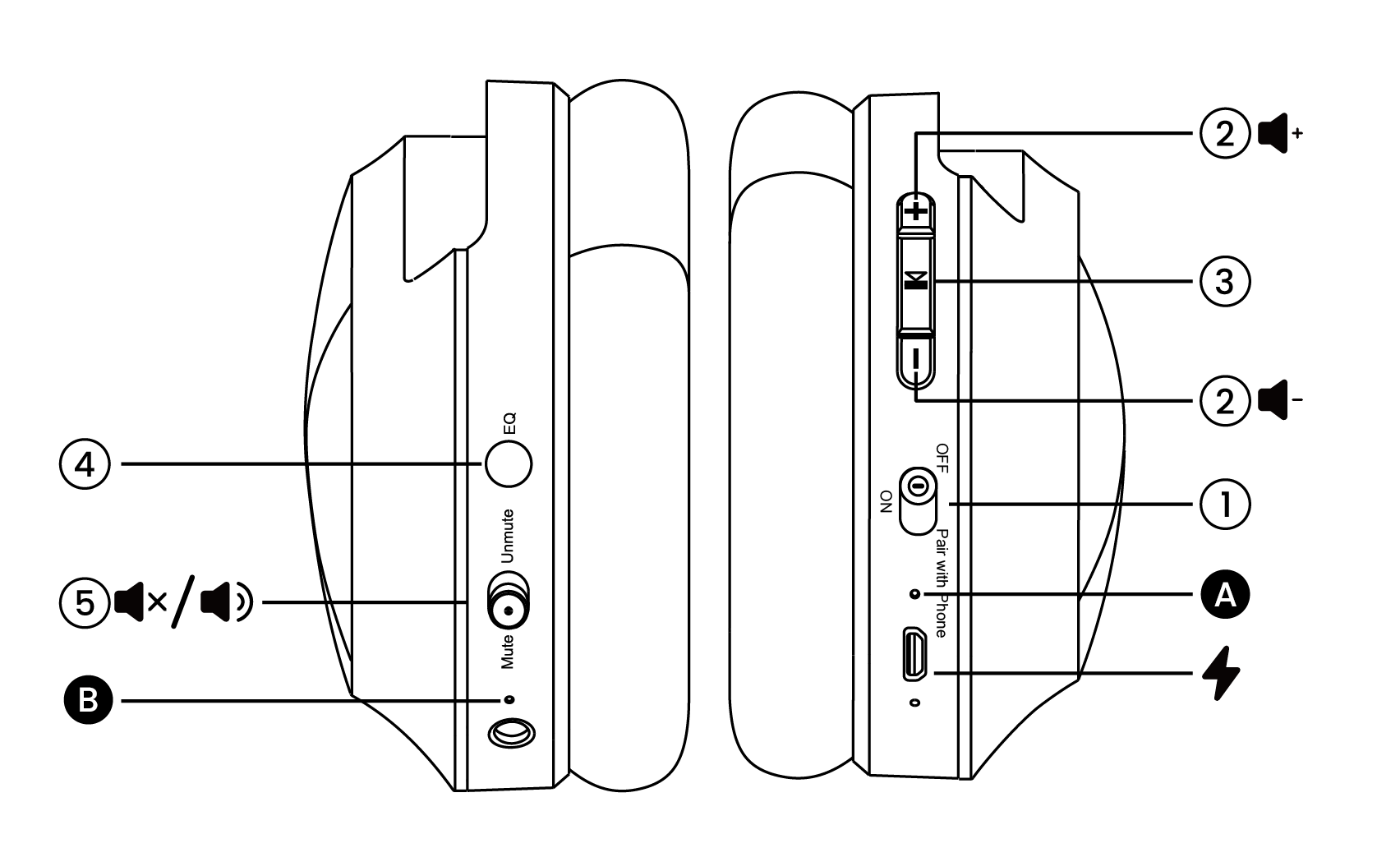

Headphones Overview
Button Functions
| No. | Button | Function |
| ① | OFF/ON/Pair with Phone | - Slide to ON/OFF to power the headphones on or off. - Hold in PAIR position for 3 seconds to enter Bluetooth pairing mode. |
| ② | + / – | - Press or hold to increase or decrease volume. - Press and hold + and - together for 5 seconds to reset the headphones. |
| ③ | Multi-function | - Press and hold for 3 seconds to search nearby Auracast broadcast. - Double-press to switch between Auracast and Bluetooth modes. |
| ④ | EQ | Press once to cycle between Bass, Balanced, Clear Voice 1, and Clear Voice 2 modes. |
| ⑤ | Mute/Unmute | Switch to enable/disable mute function. |
LED Indicators
| No. | Indicator | Meaning |
| A | Flashing blue | Power on |
Solid orange | Auracast Connected | |
| Solid blue | Bluetooth Connected | |
Flashing orange | Auracast searching mode | |
| Flashing red & blue | Bluetooth pairing mode | |
| Flashing red | Low battery | |
| Solid red | Charging | |
| Off | Fully charged or power off | |
| B | Solid white | Mute function is enabled |
| Off | Mute function is disabled or power off |
Transmitter Overview
Button Functions
| No. | Button | Function |
| ⑥ | Volume Boost/OFF/ON | - Slide to ON/OFF to power the transmitter on or off. - +6 dB higher when set to Volume Boost (Optical mode only). |
| ⑦ | Input Selector | Switch to match the audio input mode: • AUX • OPT • HDMI ARC |
| ⑧ | Hold-🎧/🦻 | Press and hold for 3 seconds to switch between the hearing aids & headphone mode |
LED Indicators
| No. | Indicator | Meaning |
| C | Flashing white | Power on/No valid audio signal detected |
| Solid white | Valid audio signal detected | |
| D | Solid orange | Headphone mode |
| Solid white | Hearing aids mode | |
| E | Solid red | Charging |
Off | Fully charged or power off |
