Set Up 1: Connect the Audikast to your TV / Audio Source

The Audikast 2 must be connected to a power source via the provided power cable in order to function. For wall-mounted TVs, you can use the adhesive pad to attach the transmitter to the wall beside your TV. Plug the transmitter into either:
1. A TV’s USB power port (we recommend this so that it turns ON / OFF in tandem with your TV), OR
2. A nearby wall outlet - 5V/500mA-2A rated USB adapter (any phone charger should work. Please contact support@avantree.com if you'd like us to send you a free adapter)
Once the Audikast 2 is connected to a power source, you can then connect it to your TV's audio ports. You can choose one of 3 different ways to do this:

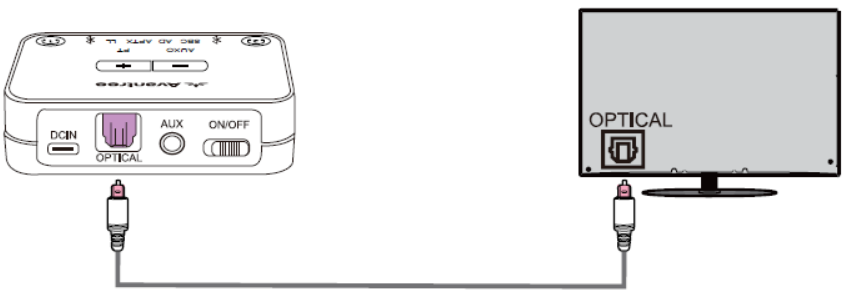

OPTION 1 Optical port (recommended)

Plug the provided optical cable into the TV’s “optical OUT”or “OPT OUT” port, then plug the other end into the transmitter’s optical port.

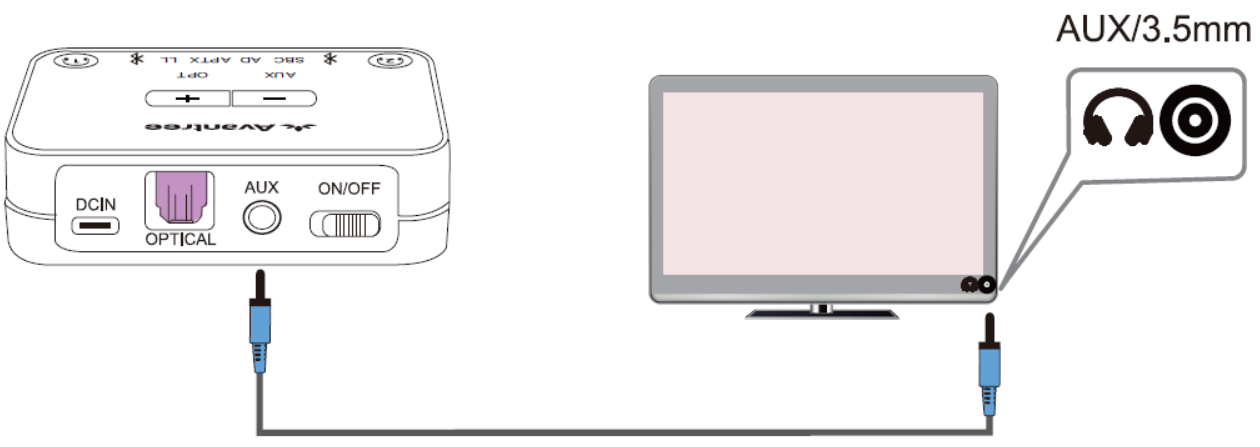

OPTION 2 AUX 3.5mm port

Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output port, then plug the other end into the transmitter’s AUX 3.5mm port.

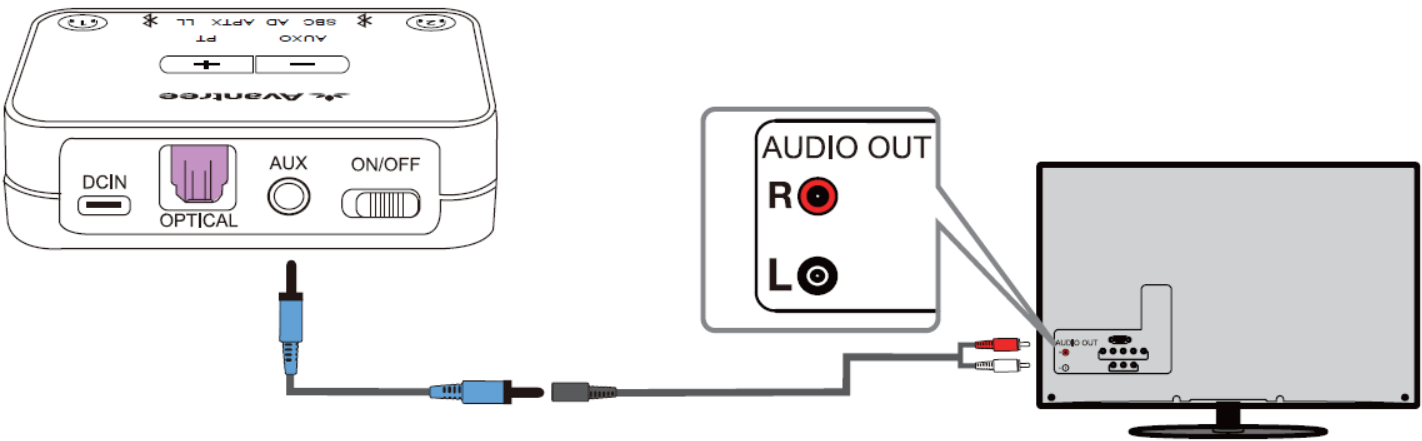

OPTION 3 RCA port

Attach the RCA adapter to the AUX 3.5mm audio cable. Plug the red & white connectors into the TV’s “AUDIO OUT” ports, then plug the other end into the transmitter’s AUX 3.5mm port.

NOTE: Double check to ensure that optical / RCA cables are plugged into the TV’s audio OUT ports and not the AUDIO IN / COMPONENT IN ports.
