How to Factory Reset the TC417

Important: TX and RX Reset Together

The TC417's TX (Transmitter) and RX (Receiver) modes share the same factory reset process.

Resetting the TC417 in either mode will also reset the other mode.

Follow these 3 simple steps to reset your Avantree TC417 and clear its Bluetooth pairing history.

After a successful reset, TC417 will automatically enter Bluetooth pairing mode again.

1 Power On

2 Hold PAIR

3 Check LED

STEP 1 OF 3

Power On Your TC417

Turn on your Avantree TC417.

You may use either TX or RX mode. The reset works in both modes.

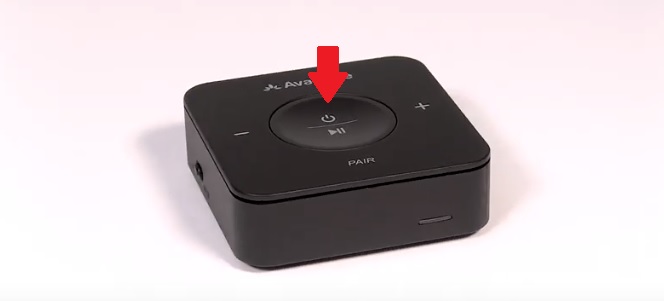

Locate the power button on your TC417.

TX RX

Either Mode Works

No Need to Switch Modes

If TC417 is already powered on in TX or RX mode, you can continue directly to the next step.

Step 1 of 3 Next →

STEP 2 OF 3

Press and Hold the PAIR Button

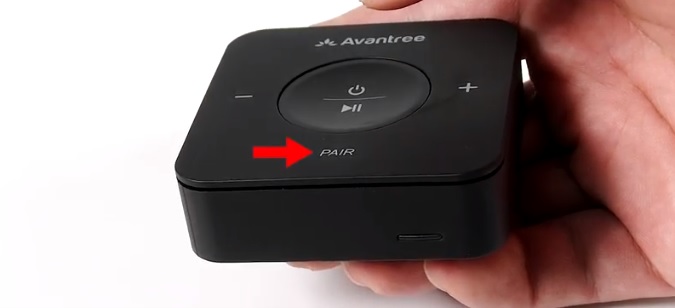

Locate the PAIR button on your TC417.

Press and hold the PAIR button for approximately 8 seconds.

PAIR

Press and Hold PAIR

Keep holding until you see the red LED flash twice.

Factory Reset Confirmation

RED LED — Flashes Twice

Two red flashes indicate that the factory reset was successful.

When Should I Release the Button?

Release the PAIR button after the red LED flashes twice.

← Back Step 2 of 3 Next →

STEP 3 OF 3

Confirm TC417 Enters Pairing Mode

After the factory reset, TC417 will automatically re-enter Bluetooth pairing mode.

The LED indicator will flash rapidly GREEN or BLUE, depending on the mode you are using.

Green LED

Rapidly Flashing Green

Bluetooth pairing mode.

Blue LED

Rapidly Flashing Blue

Bluetooth pairing mode.

✓ Factory Reset Complete!

Your TC417 has been reset and is ready to pair with a Bluetooth device again.

What Should I Do Next?

If using TC417 in TX mode, put your Bluetooth headphones or speakers into pairing mode and reconnect them to TC417.

If using TC417 in RX mode, reconnect it from the Bluetooth settings of your phone or other audio source.

← Back Step 3 of 3 Start Over

Ready to Reconnect Your Headphones?

If you use TC417 to transmit TV audio to Bluetooth headphones or speakers, follow the pairing guide to reconnect after the reset.

RECONNECT BLUETOOTH HEADPHONES →

Common Questions

Does Resetting TX Mode Also Reset RX Mode?

Yes. TC417 resets both TX and RX modes together.

Resetting in either mode also resets the other mode.

How Long Should I Hold the PAIR Button?

Press and hold the PAIR button for approximately 8 seconds.

The LED will turn red and flash twice when the factory reset succeeds.

How Do I Know the Reset Was Successful?

The LED indicator will flash RED twice.

Afterward, TC417 automatically re-enters Bluetooth pairing mode, indicated by a rapidly flashing green or blue LED.

Why Is the LED Flashing Green or Blue After Reset?

This is normal.

After a successful reset, TC417 automatically enters Bluetooth pairing mode.

The rapidly flashing green or blue LED indicates that TC417 is ready for Bluetooth pairing.

Do I Need to Pair My Headphones Again?

Yes. After clearing the Bluetooth pairing history, you will need to reconnect your headphones or speakers to TC417.

View TC417 Bluetooth Pairing Guide

What If the Red LED Does Not Flash Twice?
