For a church assistive listening system, use a dedicated mixer output such as Monitor Out, Stereo Out, Matrix Out, or Aux Out.
Use a line-level output — not the PHONES jack.
A dedicated line-level output provides a cleaner, more consistent signal for the Auracast transmitter and is better suited for a permanent installation.
Connection Reference
Use this example to identify the correct output on the church mixing board and connect it to the Auracast transmitter.
1. Choose an output on the mixing board
Use whichever dedicated line-level output is available on your mixer.
2. Connect the mixer to the Auracast transmitter
Match the cable to the output available on your mixing board and the audio input on your Auracast transmitter.

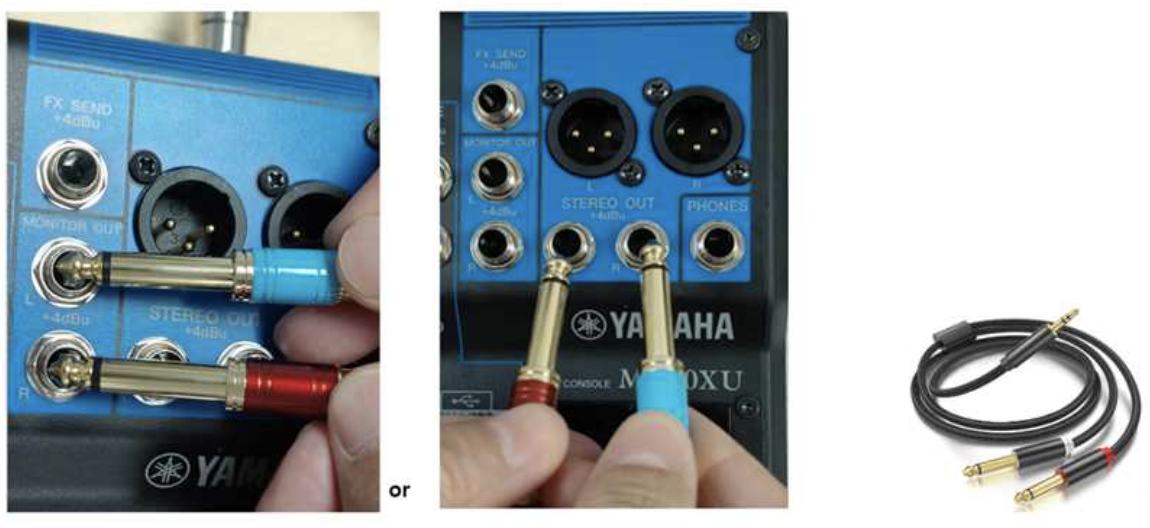

If your mixer uses 6.35 mm (¼") L/R outputs
Use a Dual 6.35 mm (¼") to 3.5 mm cable if your Auracast transmitter accepts a 3.5 mm Line-In connection.
Avoid using the PHONES / headphone output for permanent installation
A headphone jack may work, but a dedicated line-level output is preferred for a fixed church installation.
Which transmitter should I use?
Oasis Aura
Suitable for setups using a compatible line-level audio output from the mixing board.
AirCast
Designed for permanent venue installations and professional audio integration.
Using Auracast hearing aids?
Compatible Auracast hearing aids can receive the broadcast within the transmitter's coverage area. The hearing aids must support Auracast / Bluetooth LE Audio Broadcast.
Need help with your church setup?
Tell us the brand and model of your mixing board and which audio outputs are available.
