Product Overview

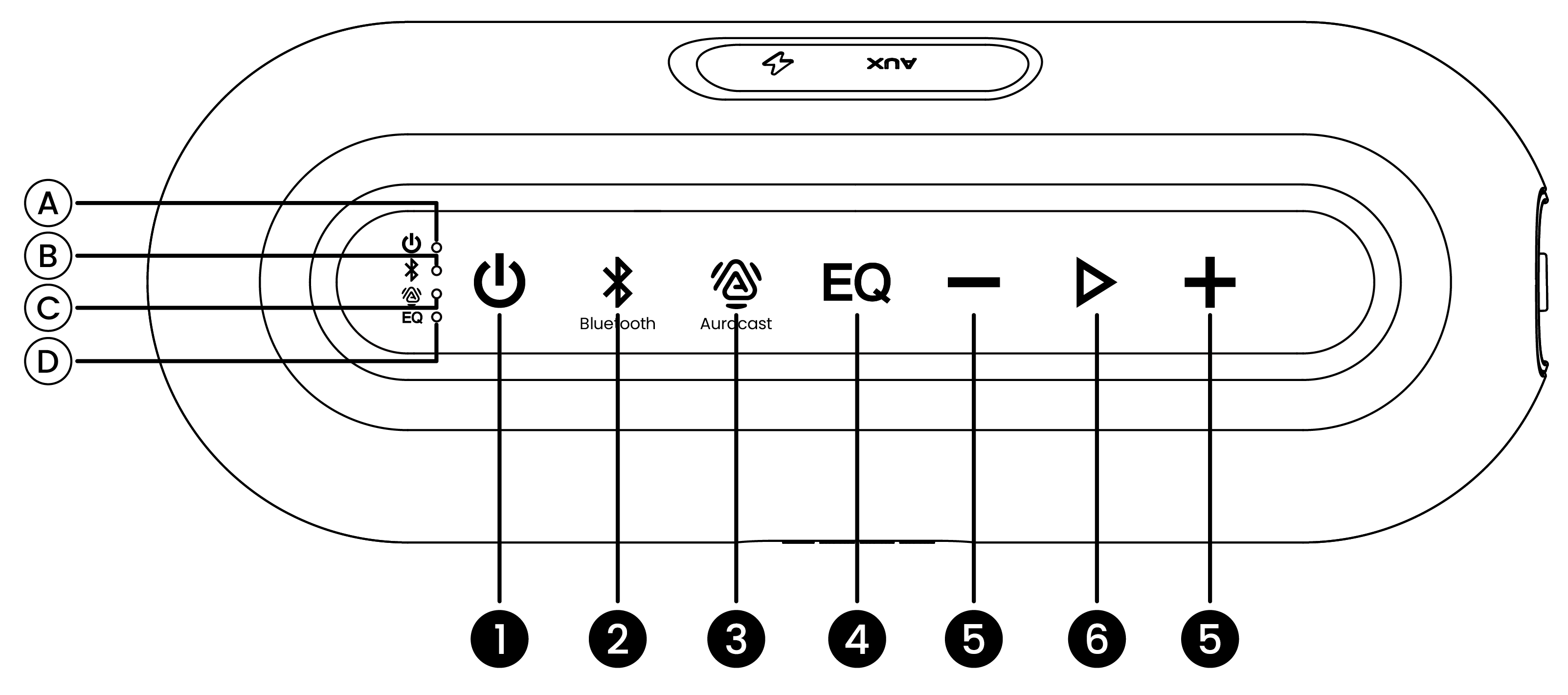

Button Functions
| No. | Button | Function |
| ① | - Press & hold for 2s to power on/off | |
| ② | - Press & hold for 3s to enter Bluetooth pairing manually | |
| - Single press to reconnect manually | ||
| - Single press to switch to Classic Bluetooth mode | ||
| ③ | - Single press to switch to Auracast mode | |
| - Press & hold to disconnect the current connection and search for broadcasts. | ||
| ④ | EQ | - Single press to switch between Balanced, Voice Clear & Bass modes |
| ⑤ | + / - | - Press or hold to increase or decrease volume - Press & hold both together for 5 seconds to reset the speaker |
| ⑥ | - Single press to enable or disable mute (Auracast Broadcasting mode) - Single press to play or pause audio (Bluetooth mode) - Single press to answer or end a call |
LED Indicators
| No. | Indicator | Meaning |
| A | Solid white | Power on |
| Solid pink for 2s | Pairing information cleared | |
| Flashing red | Low battery | |
| Solid red | Charging | |
| Off | Fully charged or power off | |
| B | Solid blue | Connected (Bluetooth mode) |
| Flashing red & blue | Pairing mode (Bluetooth mode) | |
| C | Solid orange | Audio received (Auracast Broadcasting mode) |
| Flashing orange quickly | No audio received (Auracast Broadcasting mode) | |
| D | White | Balanced mode |
| Green | Voice Clear mode | |
| Blue | Bass mode |
