Product Overview

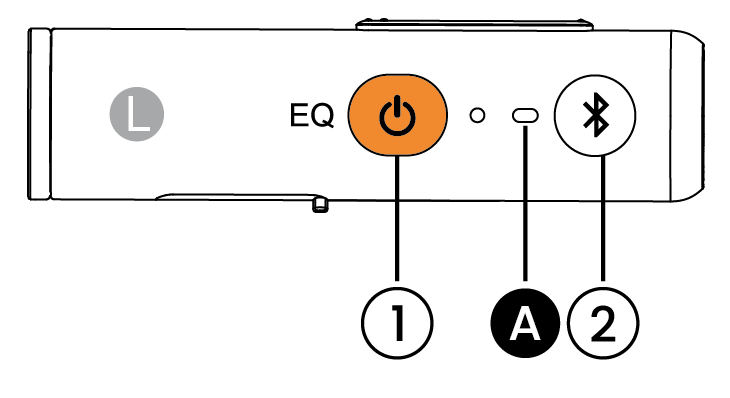

Loop Earbuds
Transmitter
Buttons Functions
| No. | Buttons | Actions | Functions |
① | Press and hold for 2s | Power on/off | |
| Single press | Switch EQ mode | ||
② | Press and hold for 3s | Enter Bluetooth pairing manually | |
| Single press | Switch Classic Bluetooth <-> Auracast | ||
| Single press | Reconnect manually | ||
| Single press | Answer/End call | ||
| Single press | Play/Pause (Classic Bluetooth) | ||
| Press and hold for 2s | Reject incoming call | ||
③ & ④ | + & - | Single press | Volume up/down |
| Press and hold together for 10s | Reset (Clear pairing histories) | ||
⑤ | Volume Boost | Single press | Turn on/off "Volume Boost" under OPT connection |
LED Indicators
| No. | Indicators & Voice Prompts | Status |
A | Blinking Red & Blue alternately; Voice prompt “Pairing” | Pairing |
| Solid Blue | Connected (Classic Bluetooth) | |
| Solid Orange | Connected (Auracast) | |
| Blinking Red; Voice prompt “Low Battery” | Low battery | |
| Solid Red | Charging | |
| LED off | Fully charged | |
| Solid Pink for 2s | Pairing info cleared | |
B | Solid Orange | ”Volume Boost" enabled |
C | Solid White | Valid audio signal |
