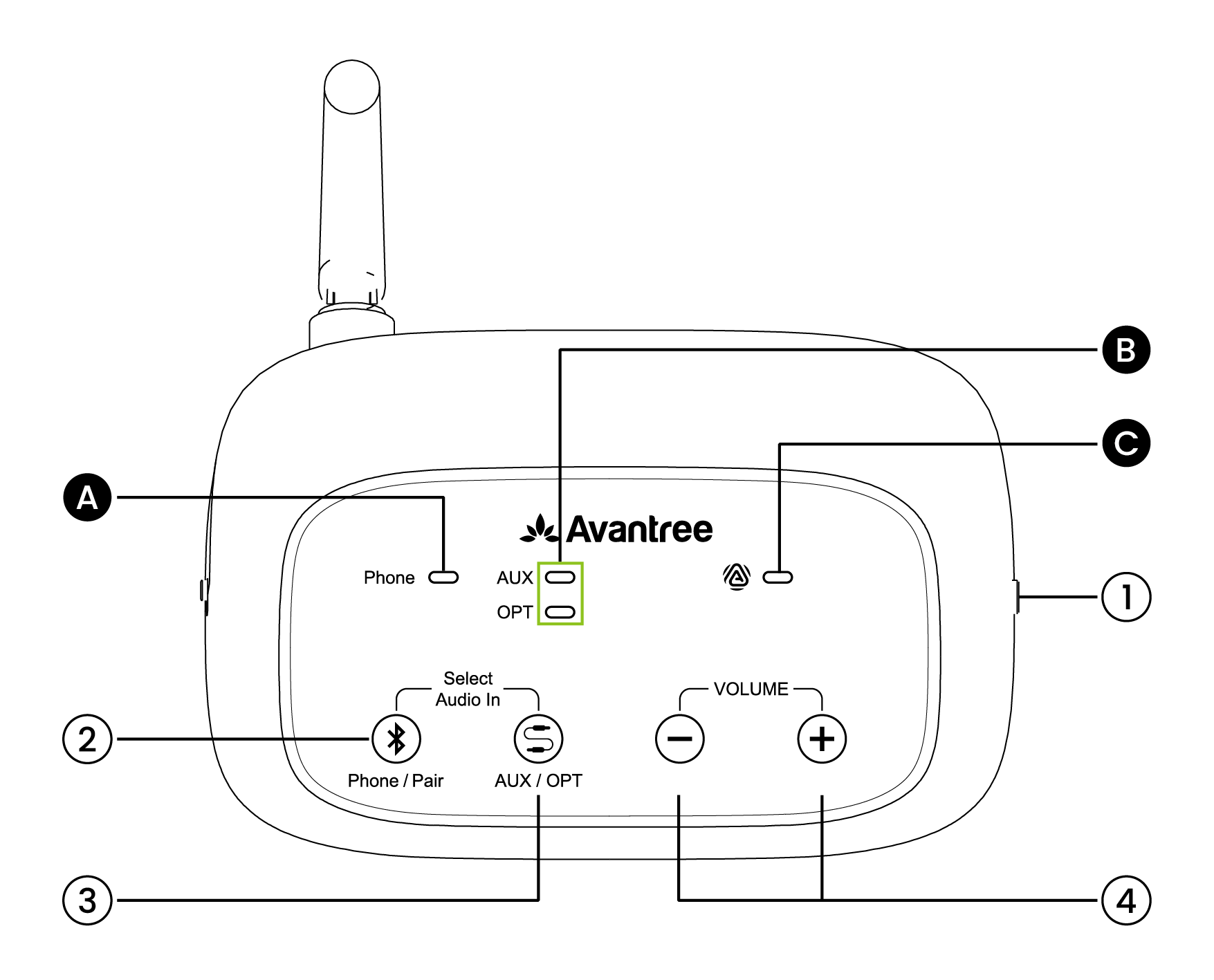

Button Functions
| No. | Button | Function |
| ① | ON / OFF | Slide to turn the transmitter ON / OFF |
| ② | Phone / Pair |
- Press to select Phone input - Press & hold for 4 seconds to enter Bluetooth pairing mode (Phone mode only) |
| ③ | AUX / OPT | Press to toggle between AUX and OPT inputs |
| ④ | + / – | Press or hold to adjust the volume |
LED Indicators
| No. | Indicator | Meaning |
| A | Solid blue | Connected |
| Flashing red & blue | Pairing mode | |
| B | Flashing red | Current sound mode is in use |
| Solid white | Audio input is detected | |
| C | Orange | Auracast Broadcasting (Auracast mode active) |
⚠️Important Note:
•When using your Avantree transmitter with a TV in Optical or HDMI ARC mode, it is essential to set your TV’s Digital Output Audio Format to PCM (Pulse-Code Modulation) to avoid audio issues. Find out more here.
