Product Overview (Transmitter- DG60L)
Button Functions
| No. | Button | Functions |
| ① | Press & hold for 2 seconds to enter pairing mode | |
| Press once to reconnect the last paired device | ||
| Double click to clear pairing history while in pairing mode | ||
| ② | Slide switch to "For music" to enable high quality audio, or "For gaming" to enable low latency |
LED Indicators
| No. | Indicator | Status |
| A | Alternate red & blue flashes | Pairing |
| Solid white | Connected with LC3 audio | |
| Solid blue | Connected with aptx lite audio | |
| Blue flashes once every 1 second | Reconnecting | |
| Solid blue & red simultaneously (pink) for 2 seconds |
Clearing pairing history (Reset) |

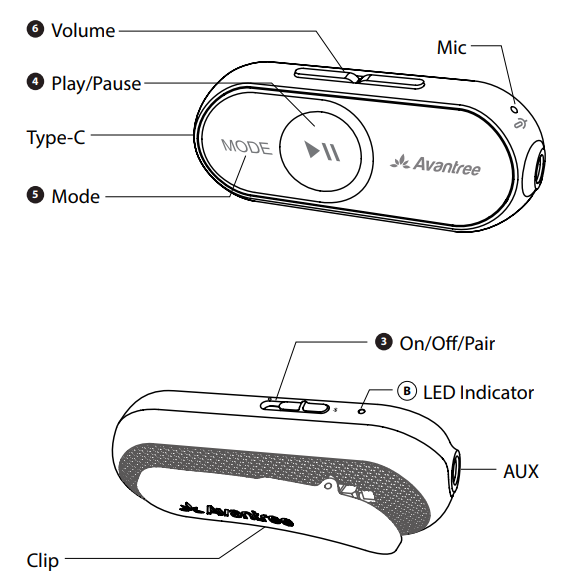

Product Overview (Receiver- AS70P)
Button Functions
| No. | Button | Functions |
| ③ | Slide to |
|
| Slide to |
||
| Slide to |
||
| ④ | Press once to play / pause | |
| Press once to accept / end call | ||
| Press & hold for 2 seconds to reject call | ||
| Press twice to redial the last number | ||
| ⑤ | Switch between balance / bass mode | |
| Press once to unmute / mute microphone while talking | ||
| Press once to activate voice assistant while not talking | ||
| Press and hold it with V+/V- simultaneously to turn voice prompt ON / OFF | ||
| ⑥ | Press once for volume up / down | |
| Press and hold for 2 seconds for next / previous track | ||
| Press and hold both for 5 seconds to clear pairing history (Reset) |
LED Indicators
| No. | Indicator | Status |
| B | Alternate red & blue flashes | Pairing |
| Solid blue | Connected via classic audio | |
| Solid white | Connected via LE audio | |
| Solid blue & red simultaneously (pink) for 2 seconds |
Clearing pairing history | |
| Red flashes every 20 seconds | Low battery | |
| Solid red | Charging |
