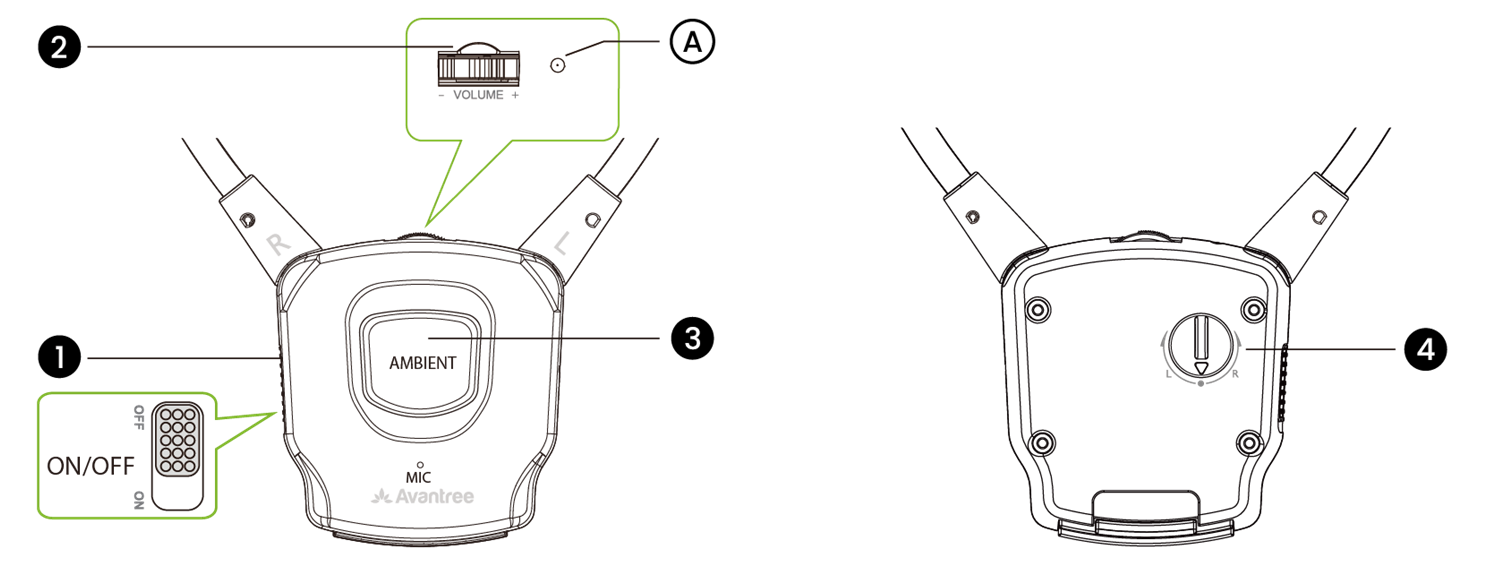

Product Overview (Earbuds)
Button Functions
| No. | Buttons | Functions |
|
① |
ON / OFF | Toggle it to turn the earbuds on / off |
|
② |
+ / - | Roll to “+ / -” to increase / decrease volume |
|
③ |
- Click once to enter AMBIENT mode to amplify surrounding sound - Hold down for 5 seconds to get the earbuds into pairing mode |
|
|
④ |
Rotate to “L / R” to boost the audio on the left or right side depending on your needs |
LED Indicators
| No. | Indicators | Status |
| A | Flashing GREEN once every second | Power on |
| LED off | Power off | |
| Flashing GREEN twice every second | Pairing | |
| Solid green | Connected | |
| Flashing GREEN every 5 seconds | Disconnected | |
| Solid RED | AMBlENT mode on |

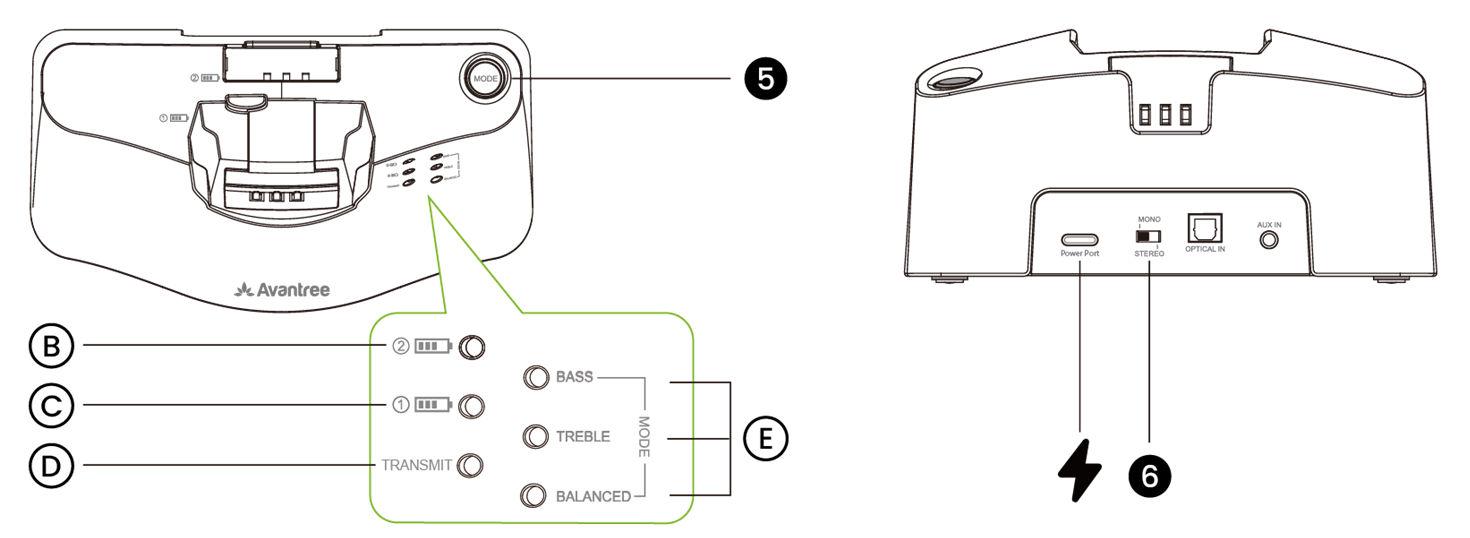

Product Overview (Transmitter & Charging Dock)
Button Functions
| No. | Buttons | Functions |
| ⑤ |
- Click once to switch between BASS / TREBLE / BALANCED mode - Hold down for 2 seconds to get the transmitter into pairing mode (From Batch T24B1) |
|
| ⑥ | Switch between "STEREO / MONO" mode |
LED Indicators
| No. | Indicators | Status |
| B | Solid RED | Spare battery charging |
| Solid GREEN | Spare battery fully charged | |
| C | Solid RED | Earbuds charging |
| Solid GREEN | Earbuds fully charged | |
| D | Solid GREEN | Earbuds and transmitter connected |
| Flashing GREEN rapidly | Transmitter enters pairing mode | |
| LED off | Earbuds charging | |
| E | Solid ORANGE | BASS / TREBLE / BALANCED EQ Mode |
