Windows Firmware Update

Update Your Aria Aura Firmware

Follow the steps below to update the headphones using the Windows DFU tool. Reference screenshots are included under the steps where you need them.

Before You Start

Windows Computer This firmware update procedure works with Windows.

Aria Aura Headphones Have the headphones ready before starting.

USB Data Cable Use a cable that supports both charging and data transfer.

Firmware + DFU Tool Download both files before beginning the update.

Important: A charging-only USB cable cannot complete the DFU process. A USB data cable is required.

Step-by-Step Firmware Update

Complete the steps in order. Open any “View Screenshot” section when you need a visual reference.

Download the Firmware File

Download AS90R_DFU_V1.12.1 and save the upgrade file to your computer desktop.

Download Firmware

Download and Install the DFU Tool

Download the BlueSuite.WIN.3.3 Installer. Unzip the downloaded file, then double-click the installer application.

Download BlueSuite.WIN.3.3

View Screenshot — Install BlueSuite

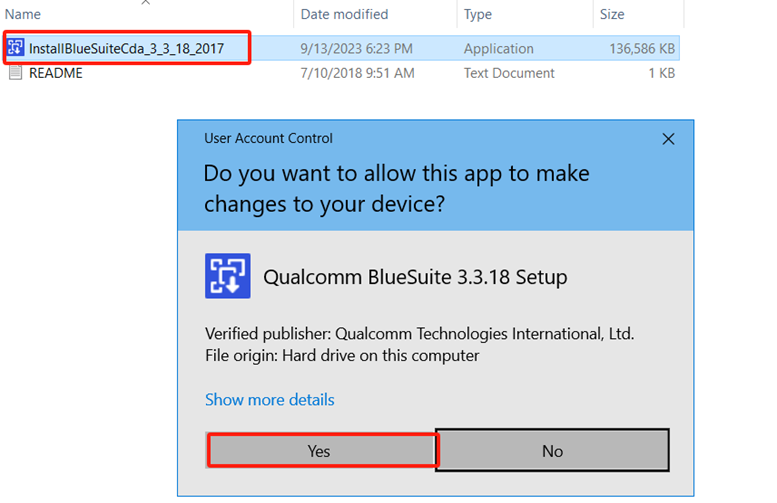

BlueSuite installer file and Windows User Account Control confirmation

Reference: Double-click the BlueSuite installer. If Windows asks whether you want to allow the application to make changes, click Yes.

Open HidDfuApp

After BlueSuite is installed, find HidDfuApp under your Windows programs and open it.

View Screenshot — Find HidDfuApp

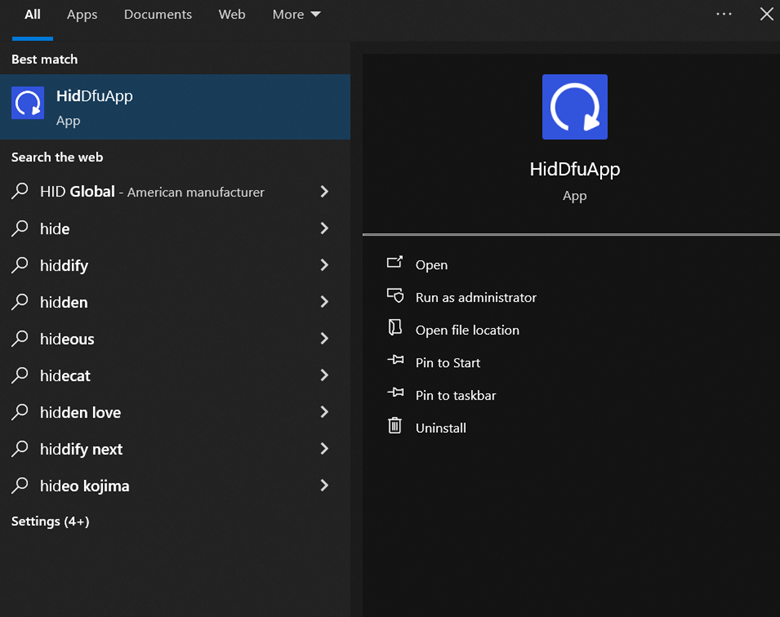

Windows search results showing HidDfuApp

Reference: Search Windows for HidDfuApp, then open the application.

Connect the Headphones

Connect the Aria Aura headphones to the Windows PC using a USB data charging cable.

Choose the Firmware File

In HidDfuApp, click Choose and select:

Firmware File AS90R_BT First_DFU_V1.12.1_PID_4033.bin

Enter the DFU Settings

Set the following values in HidDfuApp:

PID 0x 4033

Usage 0x 1

View Screenshot — Start Settings

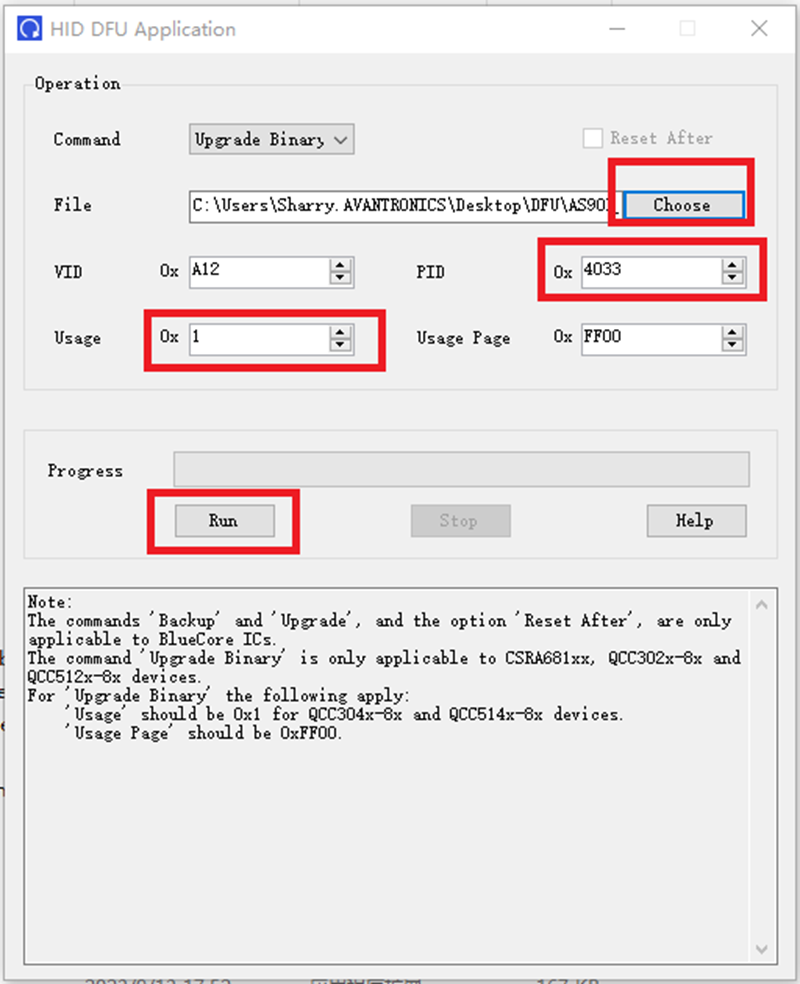

HID DFU Application showing Choose, PID 4033, Usage 1, and Run settings

Reference: Select the firmware file with Choose, set PID 0x to 4033, set Usage 0x to 1, then use Run to begin.

Click Run

After confirming the firmware file and settings, click Run.

HidDfuApp will connect to the headphones and begin the Upgrade Binary operation.

View Screenshot — Update in Progress

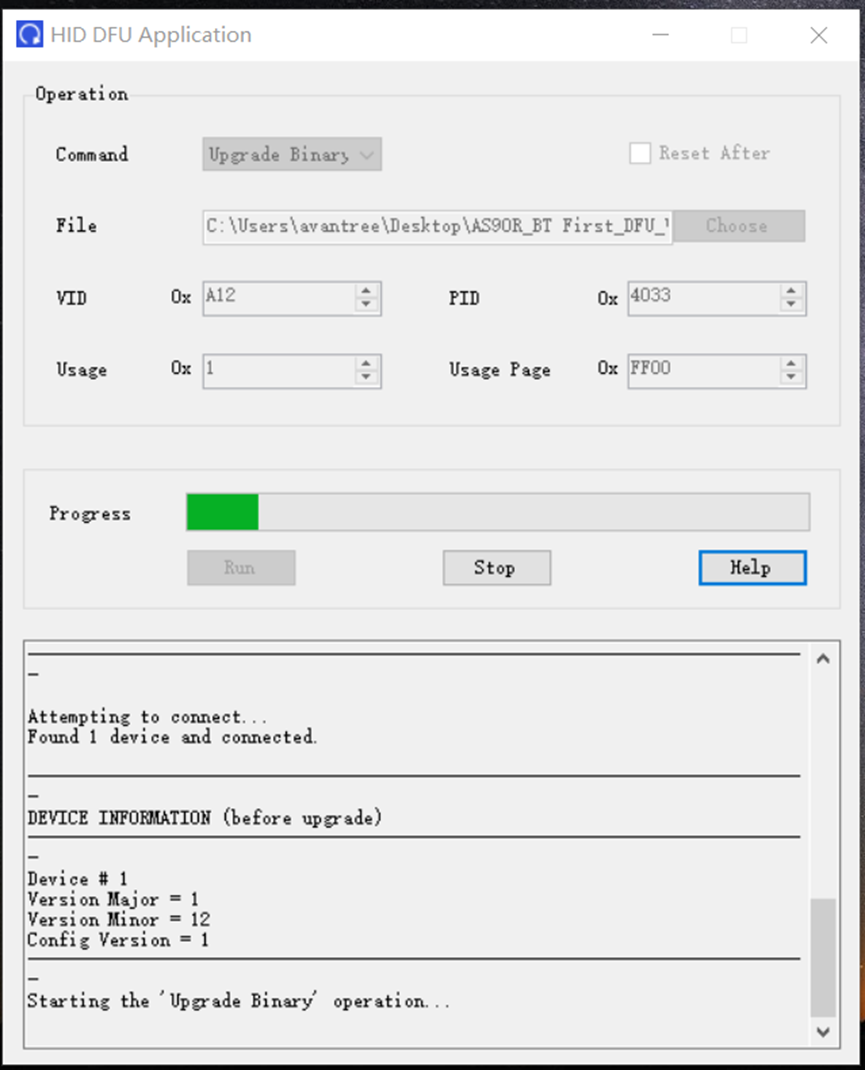

HID DFU Application showing the firmware update progress bar

Reference: The progress bar moves while the firmware is being installed. The status area shows that the device was found and the Upgrade Binary operation has started.

Wait for the Update to Finish

Keep the headphones connected while the progress bar is moving.

The DFU process is complete when the progress bar reaches the end and the application reports that the Upgrade Binary operation completed successfully.

View Screenshot — Complete Status

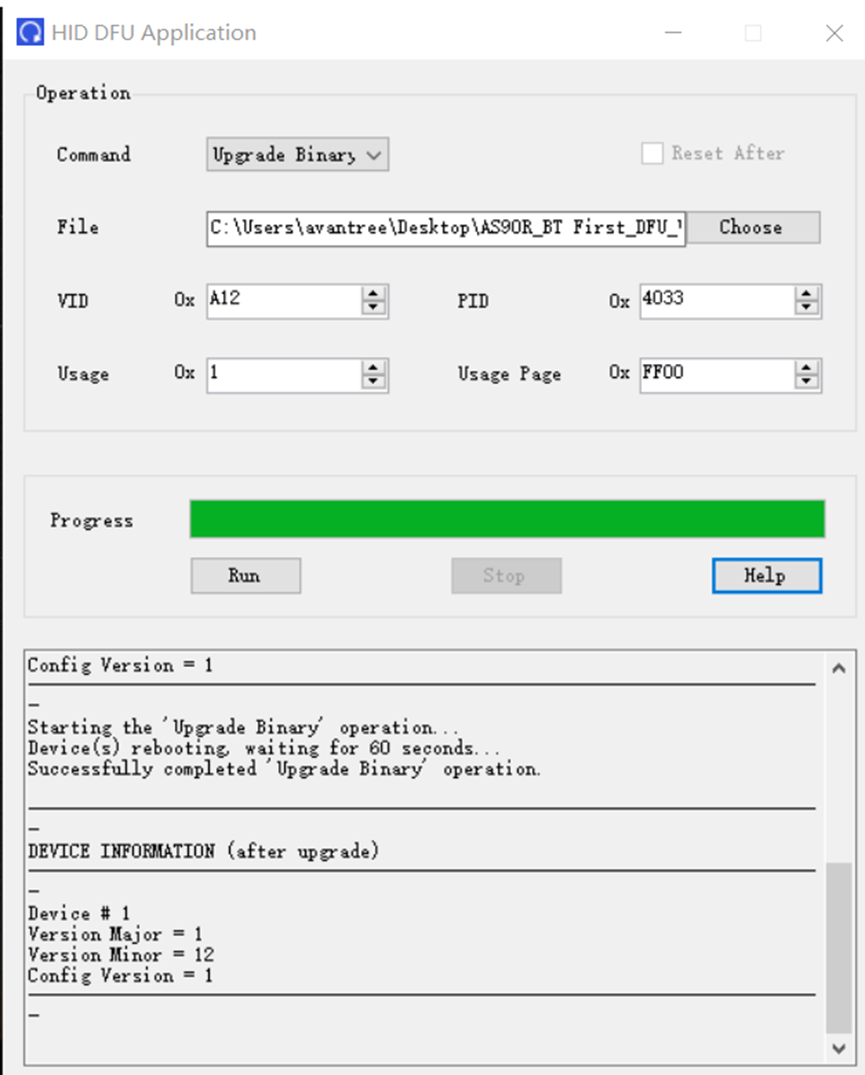

HID DFU Application showing a completed firmware update

Reference: A full progress bar and the message Successfully completed 'Upgrade Binary' operation confirm that the DFU update is complete.

Do Not Disconnect During the Update

Keep the USB data cable connected until the DFU process has completely finished.

Update Complete

Once HidDfuApp reports that the Upgrade Binary operation completed successfully, the DFU process is complete.

All Screenshots for Reference

You can also open the complete set of screenshots below for a quick visual check.

Screenshot 1 — BlueSuite Installation

BlueSuite installer and the Windows permission prompt.

Screenshot 2 — Find HidDfuApp

Find and open HidDfuApp from Windows.

Screenshot 3 — Start Status / DFU Settings

HID DFU Application start status showing firmware settings

Choose the firmware file, enter PID 4033 and Usage 1, then click Run.

Screenshot 4 — Progress Status

HID DFU Application firmware update progress status

The progress bar shows that the Upgrade Binary operation is running.

Screenshot 5 — Complete Status

HID DFU Application completed firmware update status

The full progress bar and successful Upgrade Binary message confirm that the update is complete.

Still Need Help?

If the headphones are not detected, the update does not start, or HidDfuApp shows an error, tell us which step you reached and what appears on your screen.
