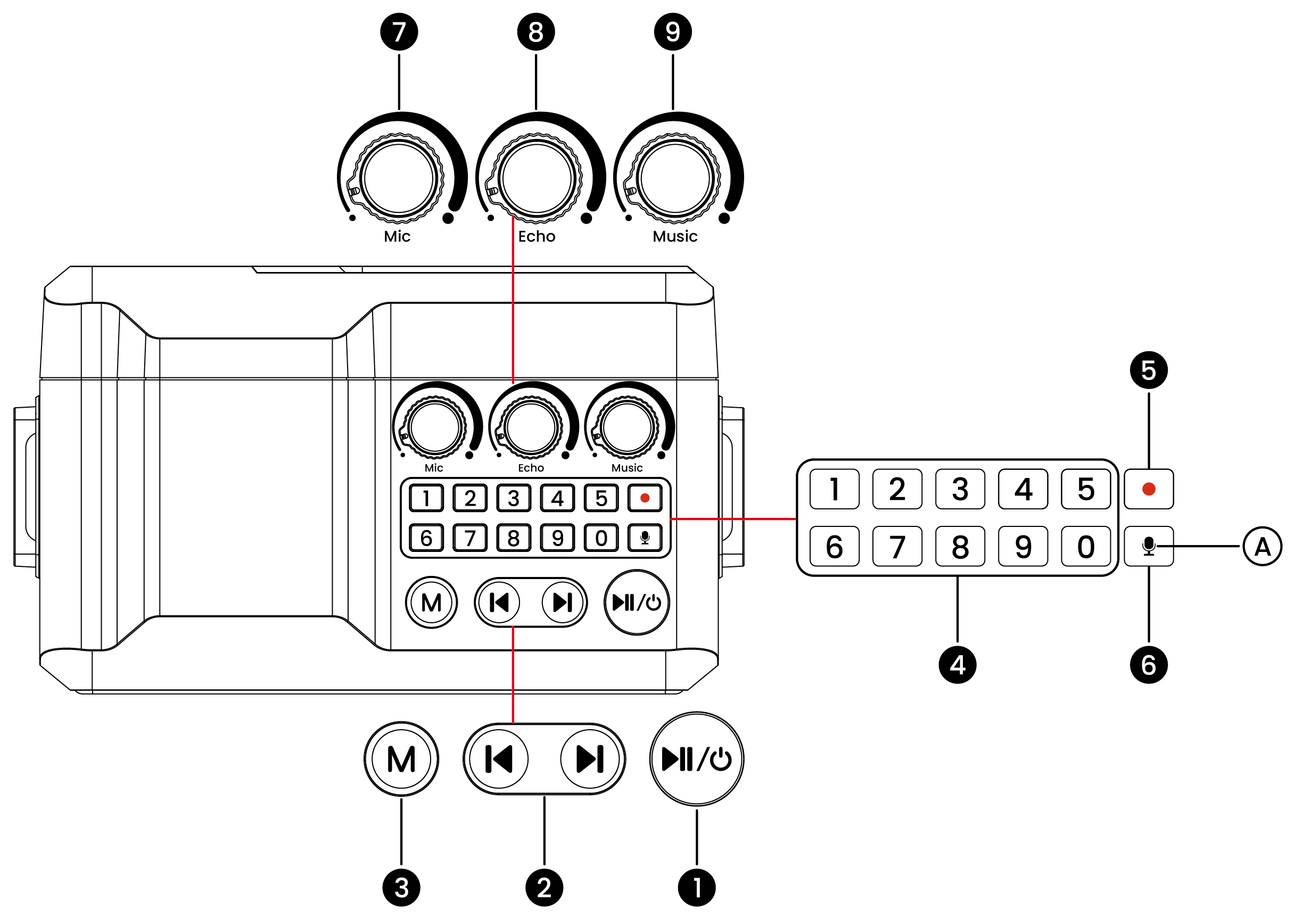

VoxAmp Duo Overview
Button Functions
| NO. | Buttons | Functions |
| ① | - Press & hold to power on / off | |
| - Press to play / pause | ||
| ② | - Press to go back to the previous track / skip to the next track | |
| ③ | - Mode Switching: Press to switch between USB / Bluetooth / TF card / Aux mode. (Note: Default mode is Bluetooth) | |
| - Bluetooth Disconnect: Press & hold the M key for 2 seconds to disconnect from the current device and enter pairing mode, and press the Play button again to reconnect | ||
| - Single Cycle: Press & hold the M key to activate single cycle function in TF card / USB mode, the | ||
| ④ | 0-9 Number Keys | - In TF card / USB playback mode, press a number to quickly play the corresponding song sequence. (Note: If the number is more than the number of songs in the current TF card / USB folder, the input will be invalid.) |
| ⑤ | - Local Recording: Press to enter recording mode, press again to stop and save the recording and exit. Press & hold to enter recording playback. (Note: 1.The operation is only effective when the USB flash drive or TF card is inserted. 2. If both USB flash drive and TF card are inserted, recording will be preferentially save to the USB flash drive. 3.During recording, the screen recording icon flashes. 4.When playing back, the screen recording icon is always on.) - Delete: When playing a recording, press & hold the recording key to delete the current recording file. | |
| ⑥ | - Wireless Microphone Pairing: Press & hold to enter the microphone pairing mode; the microphone icon will flash. Once successfully connected, the icon will stay on. Press & hold again to exit the microphone pairing mode. - Microphone Priority: Press to activate microphone priority; the music volume will automatically lower when the microphone is speaking. | |
| ⑦ | MIC | - Rotate to increase / decrease the volume |
| ⑧ | Reverb | - Adjust the music volume |
| ⑨ | Music | - Rotate to increase / decrease the volume |

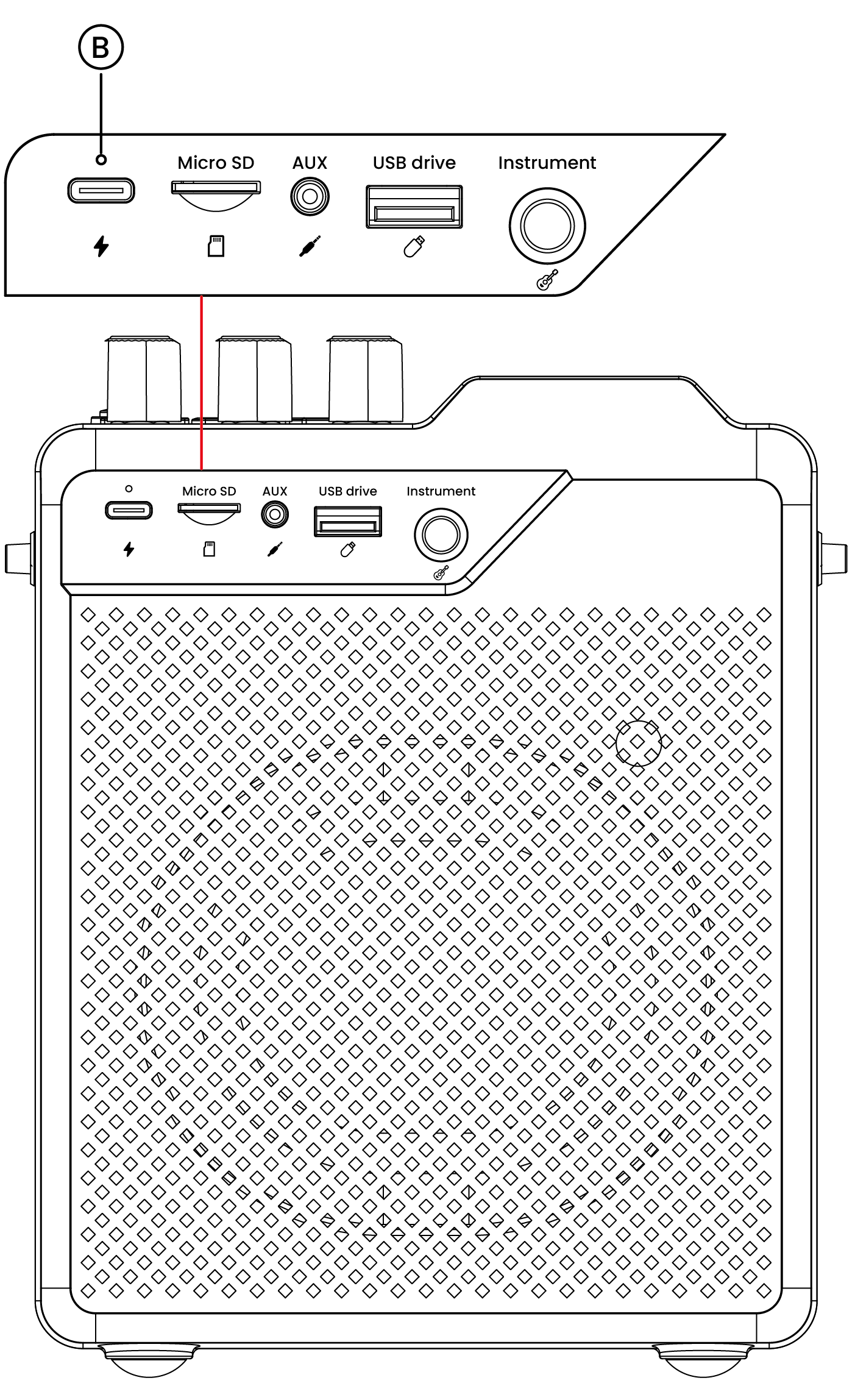

LED Indicators
| No. | Indicator | Meaning |
| A | Blinking | Microphone pairing mode |
| B | Solid red | Charging |
| Red light off | Fully charged |

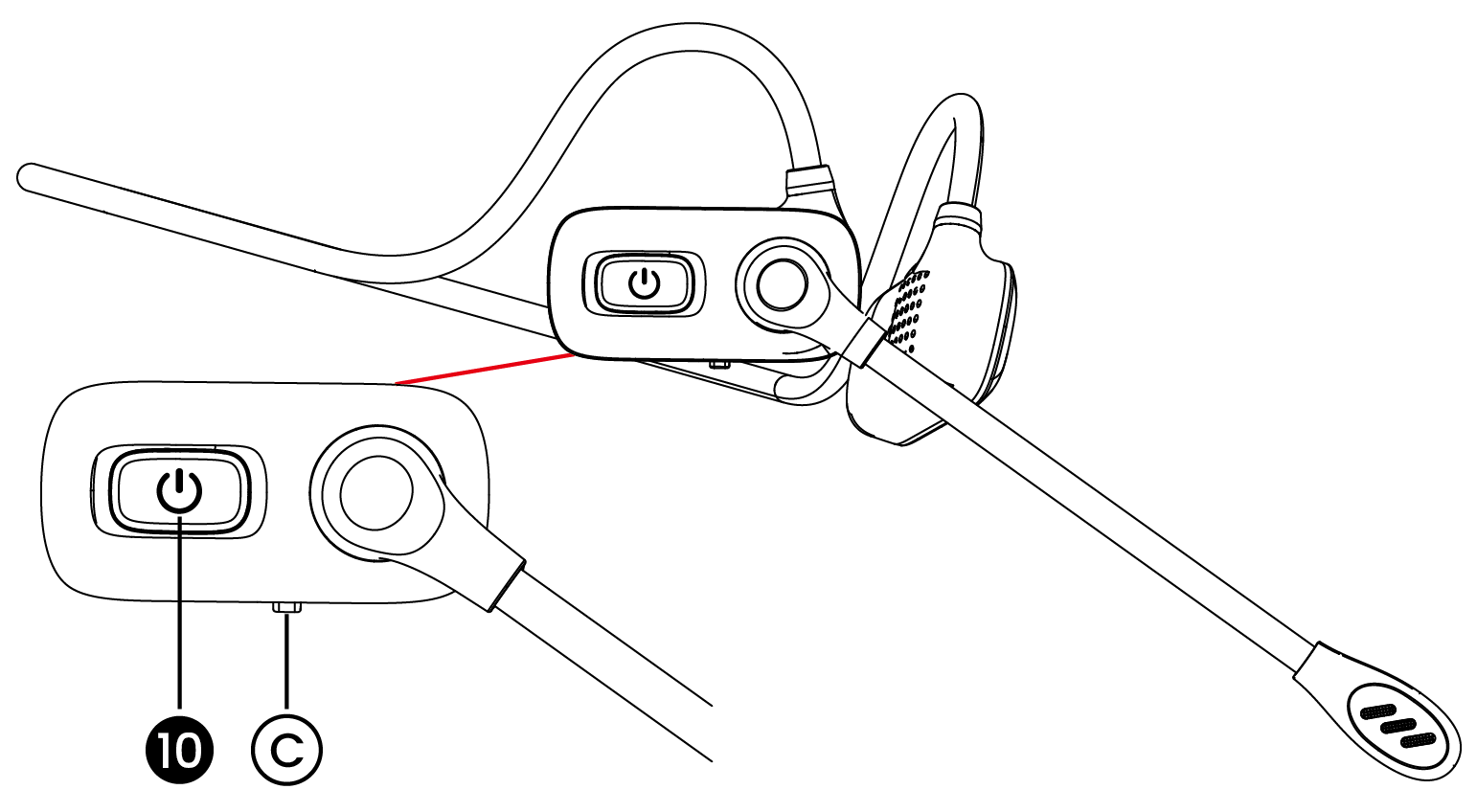

Wireless Headset Microphone Overview
Button Functions:
| No. | Buttons | Functions |
| ⑩ | - Press & hold to power on / off | |
| - Triple-press to lock the microphone | ||
| - Double-press to unlock the microphone |
LED Indicators
| No. | Indicator | Meaning |
| C | Blinking white | Connecting (Slow blink for locked devices, fast blink for unlocked devices) |
| Solid | Connected (Note: The device will automatically power off after 30 minutes of no connection) | |
| Blinking red | Battery level below 15% | |
| Solid red | Charging | |
| Off | Fully charged or powered off |

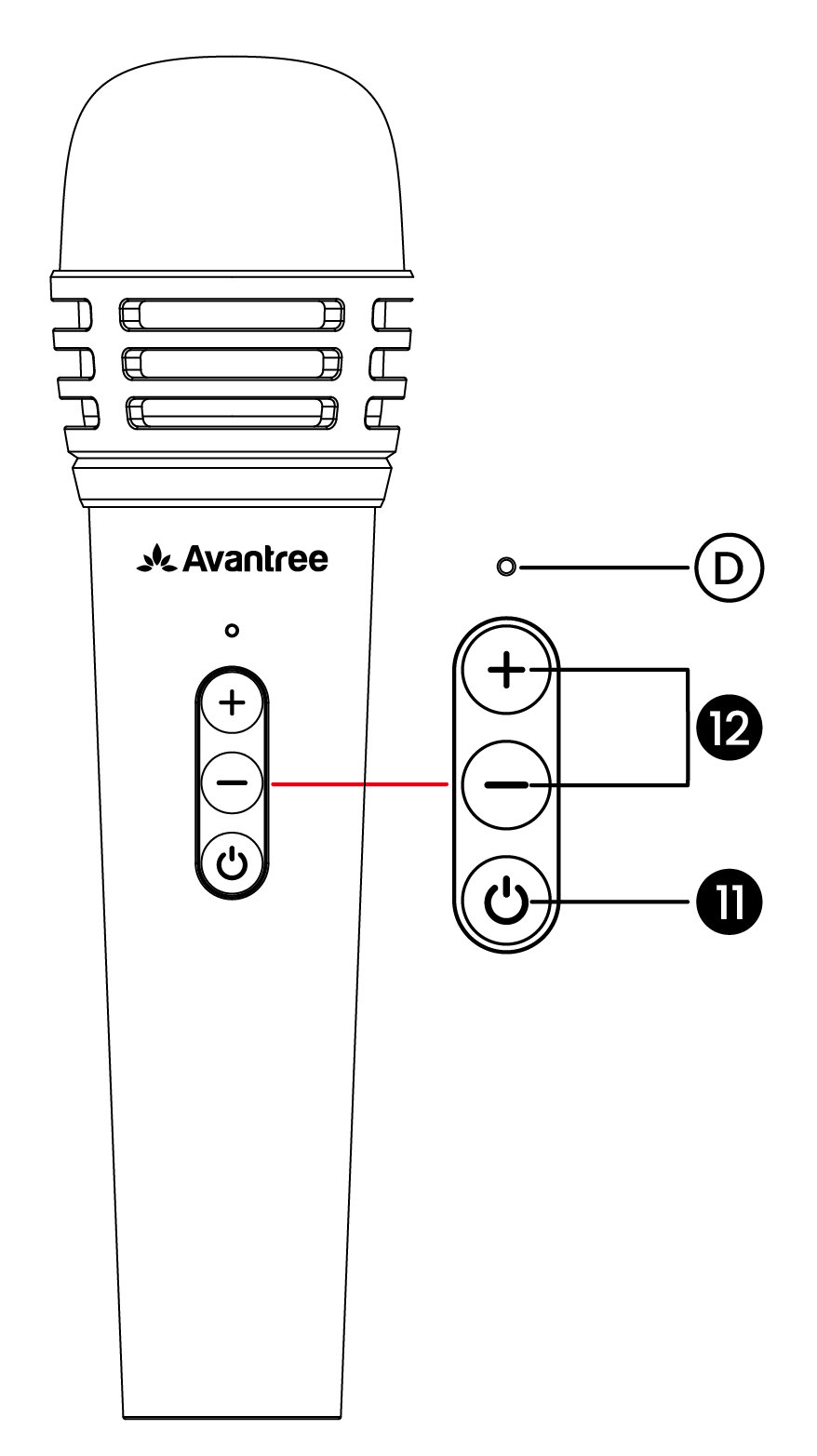

Handheld Microphone Overview
Button Functions:
| NO. | Buttons | Functions |
| ⑪ | - Press & hold for 2 seconds to turn the microphone on / off. | |
| - Press to change the reverb level (3 levels available). | ||
- Triple-press to lock the microphone after successful connection. The microphone will only respond to the locked device after locking. - Press twice to unlock. | ||
| ⑫ | + / - | - Press to increase / decrease the volume |
LED Indicators
| No. | Indicator | Meaning |
| D | Blinking green | Connecting (Slow blink for locked devices, fast blink for unlocked devices) |
| Solid green | Connected (Note: The device will automatically power off after 30 minutes of no connection) | |
| Blinking red | Battery level below 15% | |
| Solid red | Charging | |
| Off | Fully charged or powered off |
