Product Overview

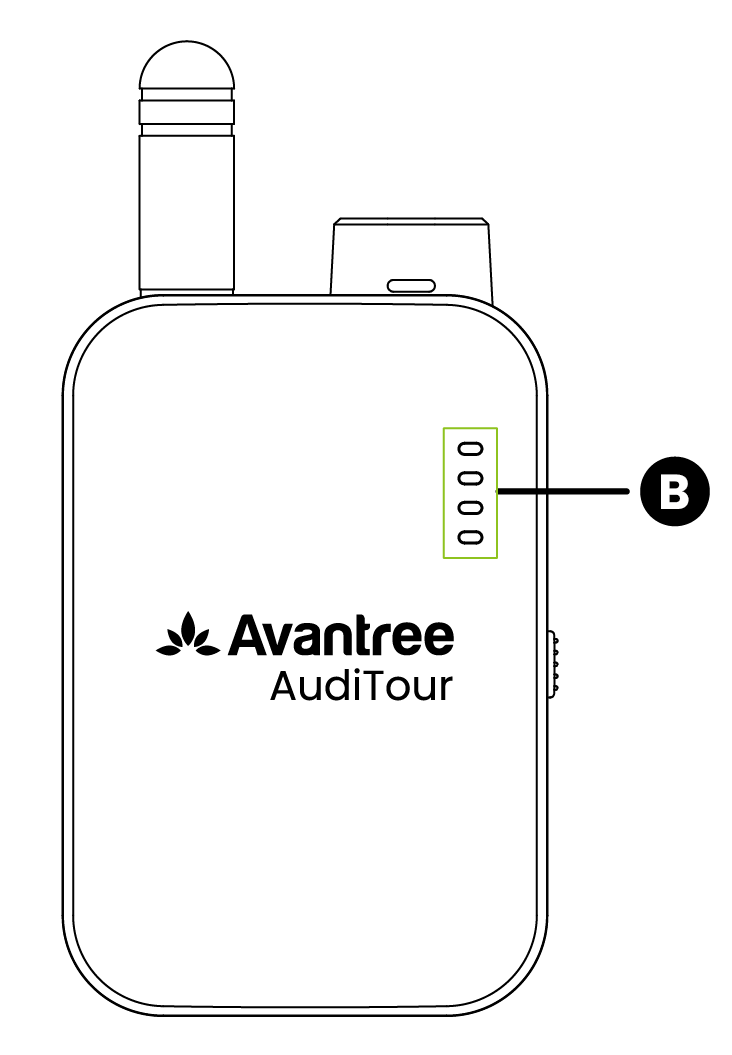

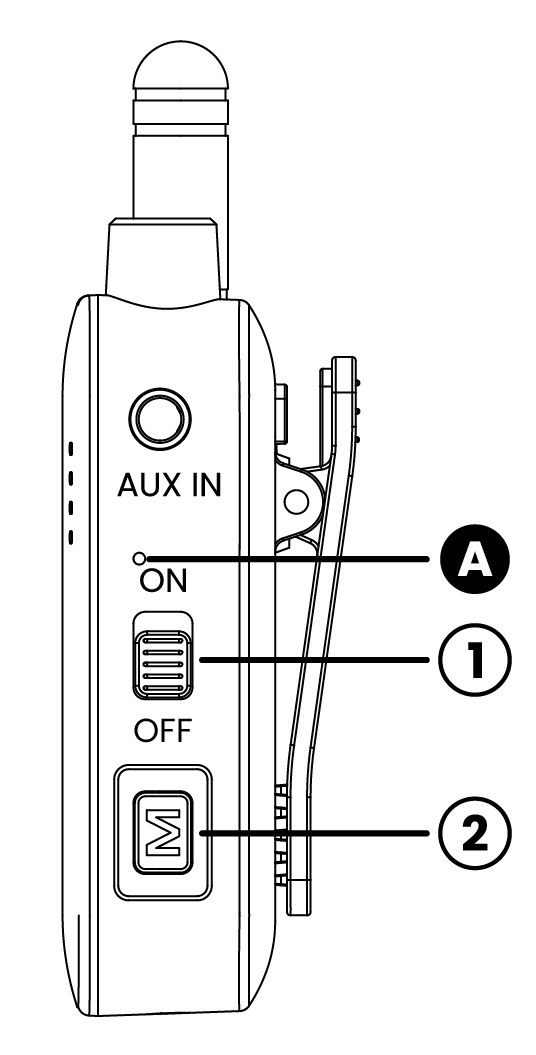

Microphone Transmitter

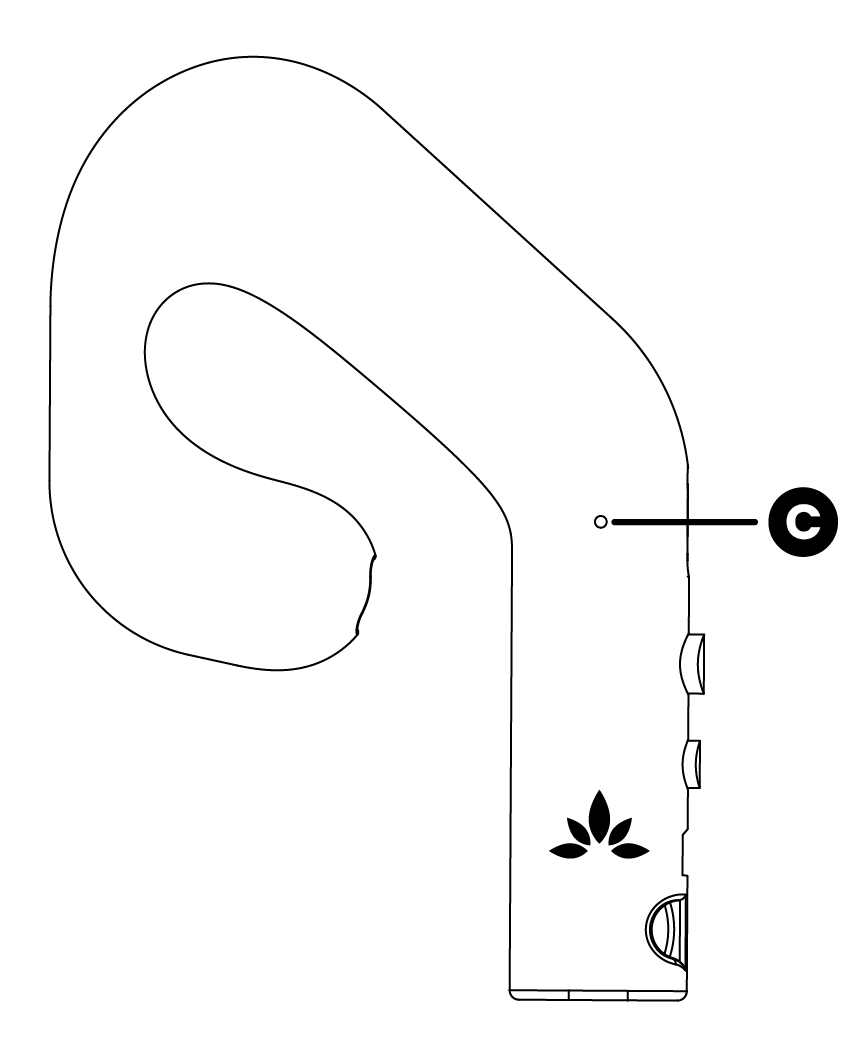

Earphone
Buttons Functions
| No. | Buttons | Actions | Functions |
① | ON/OFF | Slide to ON/OFF | Power on/off transmitter |
② | MFB | Single press | Mute/Unmute transmitter |
| Tripple press | Put transmitter into pairing mode | ||
③ | Single press | Volume up | |
| Hold until LED on | Power on earphone | ||
| Press once, then hold until LED turns red, then off | Power off earphone | ||
| Hold for 3s | Put earphone into pairing mode | ||
④ | — | Single press | Volume down |
LED Indicators
| No. | Indicators & Voice Prompts | Status |
A | Solid Blue | Powered on |
| Quick-blinking Blue | Transmitter pairing mode | |
| Blinking Blue once every 3s | Transmitter muted | |
B | Blinking Blue | Transmitter Charging |
| All in Solid Blue | Fully charged | |
C | Solid Blue | Earphone connected to Transmitter |
| Quick-blinking Blue | Earphone pairing mode | |
| Slow-blinking Blue | Earphone reconnecting | |
| Blinking Red | Low battery | |
| Solid Red | Earphone charging |
