Headphones + Soundbar

Listen Through Both at the Same Time

Connect the soundbar through the transmitter's bypass output, or use one of the HDMI ARC options below.

Optical or AUX Soundbar

First make sure TV sound is already working through the headphones.

Confirm the Headphones Have Sound

Make sure TV audio is already playing through the HT5009 Plus headphones before connecting the soundbar.

Connect the Soundbar

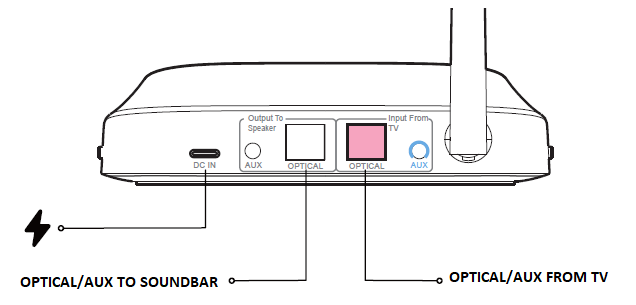

Connect the soundbar to the matching Optical Out or AUX Out port on the transmitter.

Select the Soundbar Input

Set the soundbar to the matching Optical or AUX input, then adjust the soundbar volume.

Connection Diagrams

Open the diagram that matches your setup.

1 Optical Connection

TV Digital audio output OPTICAL OUT

HT5009 Plus Transmitter TV connects to OPTICAL IN Soundbar connects from OPTICAL OUT

Soundbar Select Optical / Digital In OPTICAL IN

TV Optical Out → Transmitter Optical In → Transmitter Optical Out → Soundbar Optical In

2 AUX Connection

TV Headphone or Audio Out AUX OUT

HT5009 Plus Transmitter TV connects to AUX IN Soundbar connects from AUX OUT

Soundbar Select AUX / Line In AUX IN

TV Audio Out → Transmitter AUX In → Transmitter AUX Out → Soundbar AUX In

Is Your Soundbar Connected Through HDMI ARC?

The HT5009 Plus bypass connection uses Optical or AUX. If your soundbar needs to stay connected to the TV through HDMI ARC, use one of these options instead.

Option 1

Use the HAX06 HDMI ARC Audio Extractor

The HAX06 lets your soundbar remain connected through HDMI ARC while providing a separate audio output for the HT5009 Plus transmitter.

View HAX06

Option 2

Use a Crescendo TV Headphone System

If you prefer a TV headphone system with HDMI ARC support built into its transmitter, consider the Crescendo series.

View Crescendo

View HAX06 HDMI ARC Setup Diagram

TV HDMI ARC port HDMI ARC

HAX06 Receives TV audio through HDMI ARC HDMI ARC IN

Soundbar Remains on HDMI ARC HDMI ARC

Connect one of the HAX06 audio outputs to the HT5009 Plus transmitter so the headphones can receive the same TV audio.

Soundbar Has No Sound?

Headphones Work but the Soundbar Is Silent

Confirm the soundbar is connected to an OUT port on the transmitter.
Make sure the connection type matches: Optical In → Optical Out or AUX In → AUX Out.
Select the matching input on the soundbar.
Check that both cables are fully inserted.
Increase the soundbar volume.

Soundbar Uses HDMI ARC

HDMI ARC is not part of the HT5009 Plus Optical/AUX bypass path.

If the soundbar must remain connected through HDMI ARC, use the HAX06 HDMI ARC Audio Extractor or consider a Crescendo TV headphone system with HDMI ARC support.

Using Optical?

Set the soundbar to OPT, Optical, or Digital In.
Make sure the TV is connected to the transmitter's Optical In.
Make sure the soundbar is connected to the transmitter's Optical Out.

Using AUX?

Make sure the TV is connected to the transmitter's AUX In.
Make sure the soundbar is connected to the transmitter's AUX Out.
Select AUX or Line In on the soundbar.

Still Need Help?

Tell us whether your soundbar uses Optical, AUX, or HDMI ARC and whether the headphones already have TV sound.
