Not sure which button or light to check? Select the Transmitter or Receiver, then choose a control below. The product image will zoom into its location and the instructions will open directly below your selection.

Find the Controls on Your Audiplex M3 / MX

Choose a component, then select a button or indicator to see what it does.

Audiplex M3 / MX Transmitter

Select a transmitter control to see its location more clearly.

1 START HERE

What do you want to check?

Select a button or indicator below. Its instructions will open directly below your selection.

SELECT A CONTROL Click to open

Good to Know

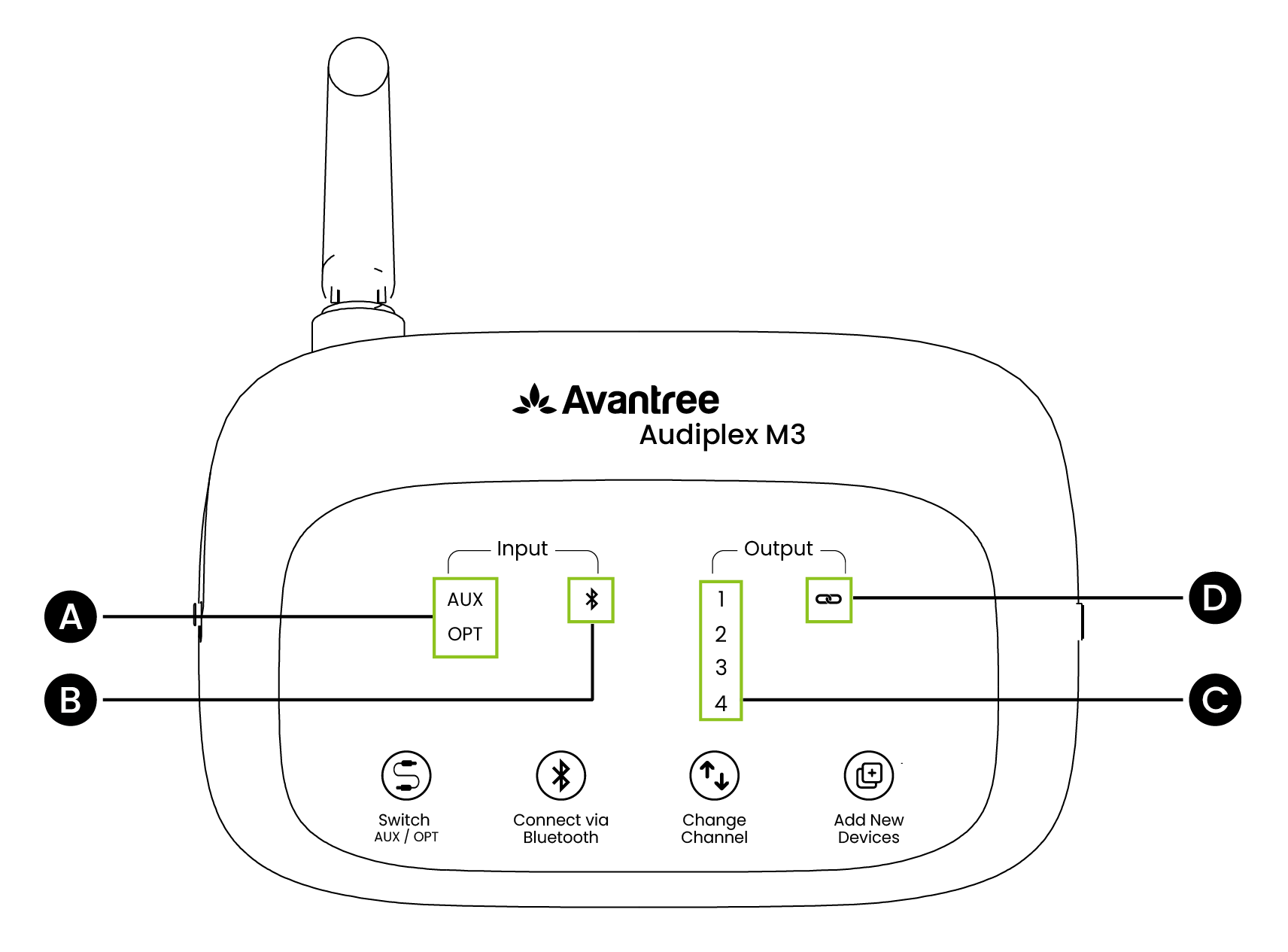

Input and Output are shown separately on the transmitter.

The left side of the display shows the selected audio input. The right side shows the active output channel and connection status.

Use Change Channel when several transmitters are nearby.

The numbered Output indicators help you identify which channel the transmitter is currently using.

Use Add New Devices when adding another compatible receiver.

The Add New Devices button is located on the right side of the transmitter's control panel.
