HT5009 Plus - Pair and Lock

  • Updated
Reconnect & Lock

Pair the Headphones Back to the Transmitter

Use these steps if the headphones and transmitter no longer reconnect automatically.

Do not skip the final Lock step.

Pairing reconnects the headphones now. Locking the connection helps them reconnect automatically the next time you turn them on.

Pair & Lock

Keep the headphones close to the transmitter and temporarily turn off Bluetooth on nearby TVs, phones, computers, or speakers while pairing.

1

Power the Transmitter

Plug the transmitter into a power source and slide its power switch to ON.

If possible, use a wall adapter instead of the TV's USB port while pairing.

2

Put the Headphones in Pairing Mode

Slide and hold the headphone power switch at PAIR until the headphone LED flashes red and blue.

Flashing red / blue = Headphones pairing

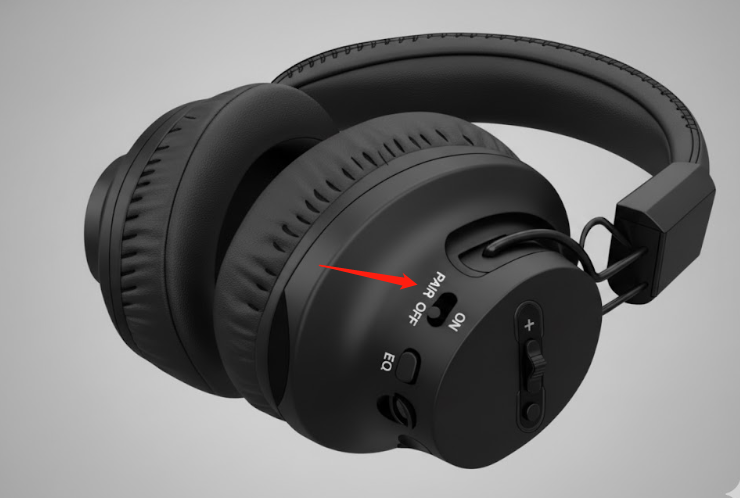

HT5009 Plus headphone power switch showing the PAIR position
Slide and hold the headphone switch at PAIR.
3

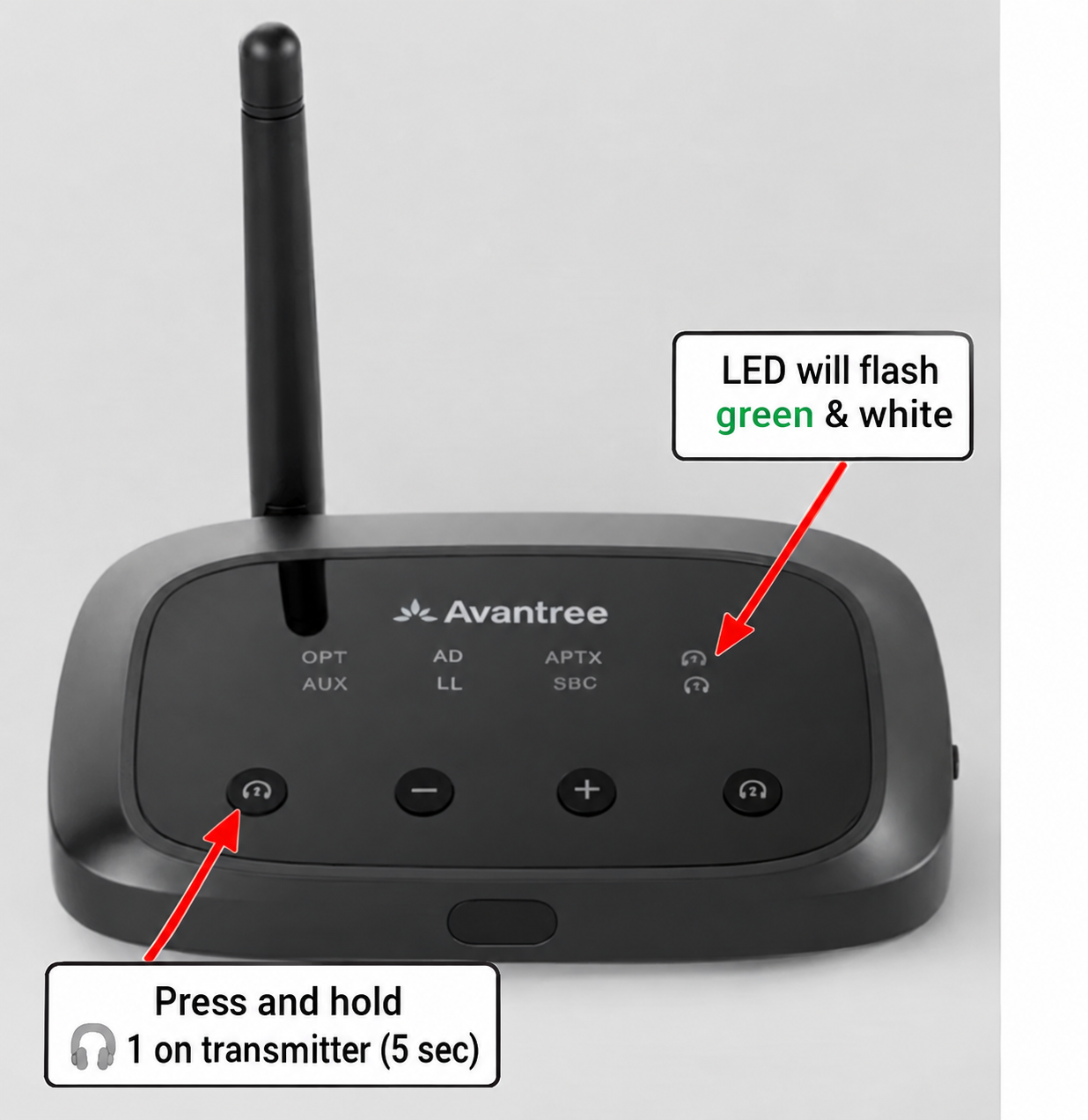

Put Headphones 1 on the Transmitter in Pairing Mode

Press and hold the Headphones 1 button on the transmitter for about 5 seconds.

Release when the Headphones 1 indicator flashes green and white.

Flashing green / white = Transmitter pairing

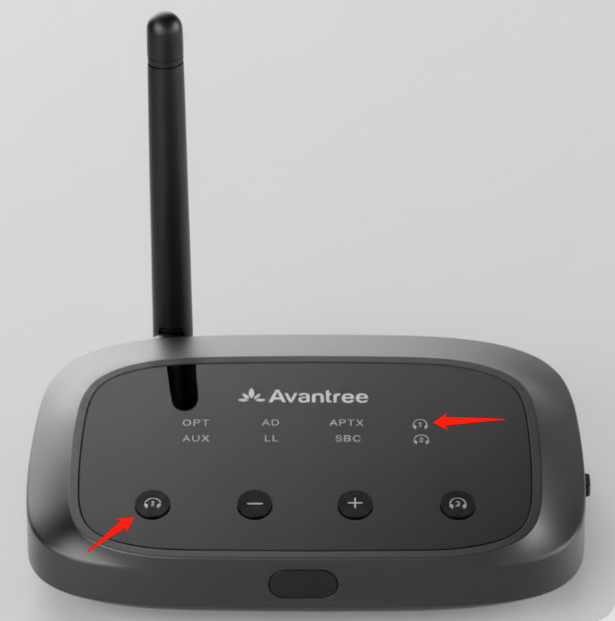

HT5009 Plus transmitter showing the Headphones 1 button and green and white pairing indicator
Hold the Headphones 1 button for about 5 seconds.
4

Wait for Them to Connect

Keep the headphones close to the transmitter and wait for the connection to complete.

The indicators will stop flashing and become solid when connected.

5
Important — Do Not Skip

Lock the Connection

After the headphones are connected, press and hold the Headphones 1 button again for about 8–10 seconds.

Release the button when the Headphones 1 indicator shows a solid white and green light.

Solid white + green = Connection locked
The headphones and transmitter are now paired and locked.

They should reconnect to each other automatically when you turn them on again.

Not Connecting?

Headphone LED Is Not Flashing Red and Blue

The headphones have not fully entered pairing mode.

  1. Turn the headphones off.
  2. Slide and hold the switch at PAIR.
  3. Keep holding until the LED flashes red and blue.
  4. Then repeat the transmitter pairing step.
Transmitter Is Not Flashing Green and White

Press and hold the Headphones 1 button for the full 5 seconds.

Keep the transmitter powered on and the headphones nearby while doing this.

They Pair, but Do Not Reconnect Next Time

The connection may have been paired but not locked.

  1. Pair the headphones and transmitter again.
  2. Wait until they are connected.
  3. Hold the Headphones 1 button for 8–10 seconds.
  4. Release when the indicator shows solid white and green.
Still Cannot Pair
  1. Turn off Bluetooth on nearby TVs, phones, computers, and speakers.
  2. Move the headphones closer to the transmitter.
  3. Restart both devices and repeat the Pair & Lock steps.
  4. If needed, try pairing in another room to reduce wireless interference.

Still Need Help?

Tell us which LED pattern you see on the headphones and on the Headphones 1 indicator.
