Step 1: Understanding your TV (or Audio Source) Audio Output Options.

Please check which type of audio output port your Audio Source has:

1. Digital Optical / SPDIF / TOSLINK port

2. 3.5mm / AUX / Headphone port

3. Red/White Audio Out port (Note 1.1: must labeled "Audio OUT")

Step 2: Connect Oasis Plus transmitter to a Power Source.

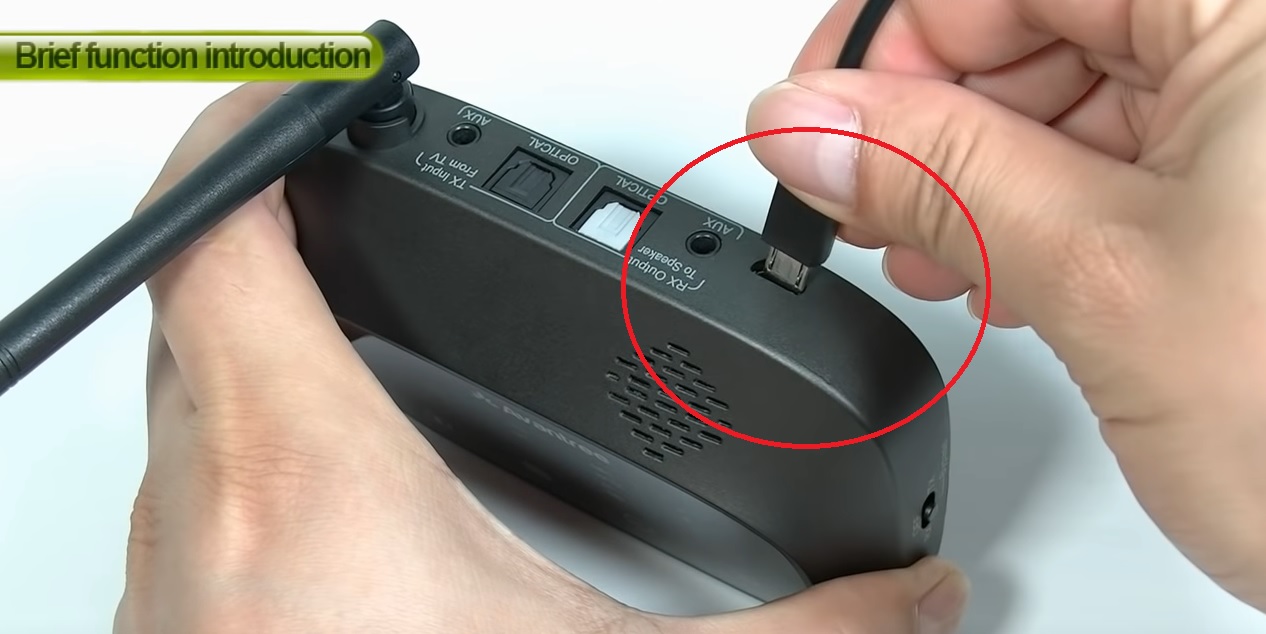

Plug the provided USB cable into the DC IN port. The other end of the cable should go into the power source.

The required power source for the charging base is 5V, 0.5A - 2A. You can use most of the cellphone wall charger OR the TV USB port. TV USB port is recommended because it allows your transmitter on / off automatically with your TV.

Most people do have spare USB power plug at home so that is not in-box. However, if you do need a power plug for this, we can send you a US / EU / UK type free of charge. Simply drop an email to support@avantree.com.

Step 3: Connect Oasis Plus transmitter Adapter to TV via Audio Cable.

Option 1. Digital Optical (a.k.a SPDIF or TOSLINK) Connection - (Recommended!)

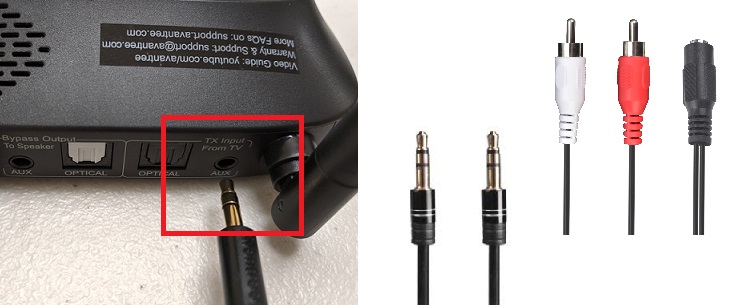

Option 2. 3.5mm AUX (a.k.a. HEADPHONES Jack)

Option 3. Red/White RCA

Step 4: (Optional): If you have a Sound Bar or AV Receiver...

You can connect your soundbar or AV receiver to the “To Speaker” ports on Oasis Plus transmitter. More complicated connection set up, please refer to“How to use with my AV Receiver”.

TV optical out --> Oasis Plus optical Black port // Oasis Plus optical White port >> Soundbar optical in

Note1.2: Input & Output must be the same type of cable connection.
