Use Orbit Pro in Bluetooth Receiver (RX) Mode

Receiver (RX) mode lets the Orbit Pro receive audio wirelessly from a Bluetooth device, such as your smartphone, and play it through a non-Bluetooth speaker or soundbar.

How RX Mode Works Smartphone / Bluetooth Audio Source Sends music wirelessly

↓

Bluetooth Connection Avantree Orbit Pro RX Mode — Receives Bluetooth audio

↓

AUX / RCA / Optical Cable Speaker / Soundbar Plays the audio

Follow These 4 Steps

Switch Orbit Pro to RX Mode

Locate the TX / OFF / RX switch on your Orbit Pro.

Move the switch to the RX position.

RX = Receiver: Orbit Pro receives Bluetooth audio from a phone or another Bluetooth-enabled audio source.

Connect Orbit Pro to Power

Use the included power cable to connect Orbit Pro to a USB power adapter and plug the adapter into a wall outlet.

Power requirement: Use a 5V USB adapter rated between 500mA and 2A.

Connect Orbit Pro to Your Speaker or Soundbar

Choose one of the included audio cables: AUX, RCA, or Optical (OPT).

Connect the cable to your speaker or soundbar and to the corresponding port in the OUTPUT section of Orbit Pro.

AUX — 3.5mm Audio Connection

Use the included AUX cable to connect Orbit Pro to a speaker with a 3.5mm AUX input.

On Orbit Pro, use:

OUTPUT — AUX

Select the AUX input on your speaker if it has multiple input modes.

RCA — Red and White Audio Connection

Use the included RCA cable to connect to the red and white audio inputs on your speaker or sound system.

Connect the Orbit Pro end to:

OUTPUT — AUX

Match the red and white connectors to the corresponding RCA audio inputs.

Optical (OPT) — Digital Audio Connection

Use the included optical cable if your soundbar or speaker has an optical audio input.

On Orbit Pro, use:

OUTPUT — OPT

Select Optical as the audio input on your soundbar or speaker.

Important: In RX mode, connect your speaker to the Orbit Pro's OUTPUT ports, not its INPUT ports.

Pair Orbit Pro with Your Bluetooth Device

Press the Search / Pairing button on Orbit Pro once to enter pairing mode.

Orbit Pro search and pairing button symbol

PRESS ONCE

Then open the Bluetooth settings on your smartphone or other audio source.

Select:

Avantree Orbit Pro

Keep your phone and Orbit Pro close together while they connect.

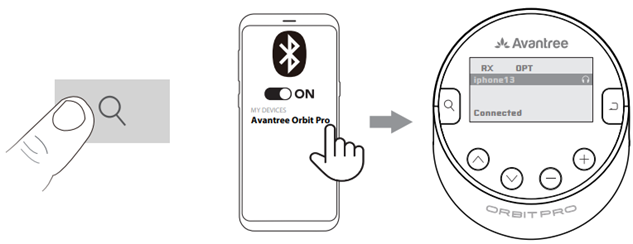

Press the Search button, select Avantree Orbit Pro on your phone, and check the LCD screen for confirmation.

Connection confirmed: The Orbit Pro LCD screen displays the

Headphone-shaped connected device indicator on the Orbit Pro LCD

icon and the word Connected.

Setup Complete

Play music or other audio on your Bluetooth device. The sound should now come through your connected speaker or soundbar.

Connected but No Sound?

Make sure Orbit Pro is switched to RX, not TX.
Check that the audio cable is connected to the Orbit Pro's OUTPUT section.
Select the correct input mode (AUX, RCA, or Optical) on your speaker or soundbar.
Confirm that your phone is connected to Avantree Orbit Pro in Bluetooth settings.
Start playing audio and check the volume on both your phone and speaker.
If the Bluetooth connection still fails, clear Orbit Pro's pairing history and try again.

VIEW ORIGINAL INSTRUCTIONS ORBIT PRO RESET GUIDE

Still Need Help?

Tell us which Bluetooth device and speaker you're using, how they're connected, and what appears on the Orbit Pro LCD screen.
