Product Overview

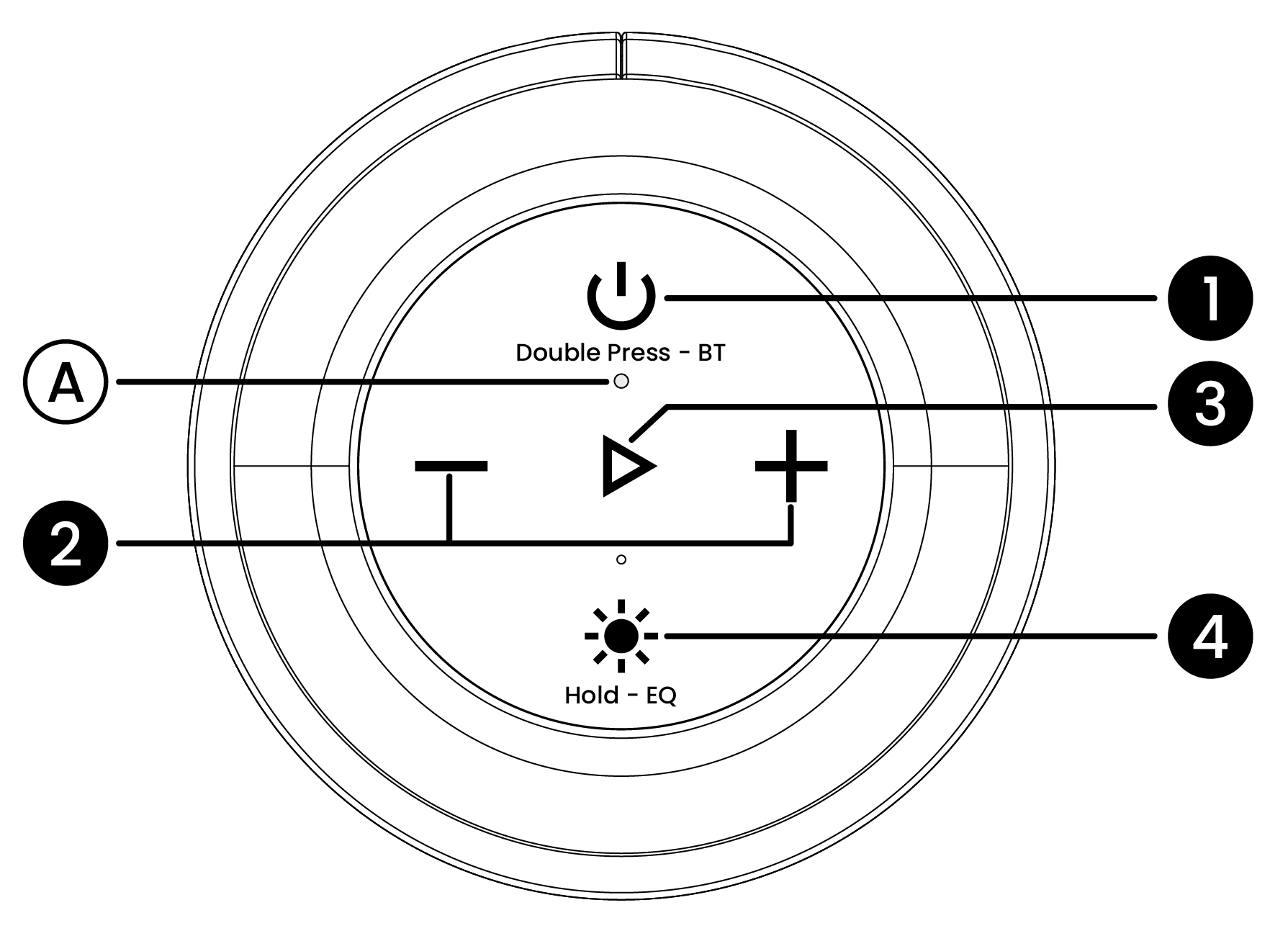

Speaker
Button Functions
| No. | Button | Function |
| ① | Hold 2s to turn on / off | |
| Double-press to switch between Auracast and Classic Bluetooth modes | ||
| ② | + / - | Single-press to adjust volume |
| Press & hold both for 5 seconds to reset | ||
| ③ | Press to play / pause music | |
| Press to answer / end a call | ||
| Hold for 2 seconds to search for Auracast broadcast or enter Bluetooth pairing mode | ||
| ④ | Press to turn RGB lighting ON/OFF | |
| Press & hold to switch EQ modes: Balanced / Voice Clear 1 / Voice Clear 2 |
LED Indicators
| No. | Indicator | Meaning |
| A | Flashing red | Low battery |
| Solid red | Charging | |
| Off | Fully charged or power off | |
| Flashing orange | No audio received (Auracast broadcasting mode) | |
| Solid orange | Audio received (Auracast broadcasting mode) | |
| Flashing red & blue | Pairing mode (Bluetooth mode) | |
| Solid blue | Connected (Bluetooth mode) |

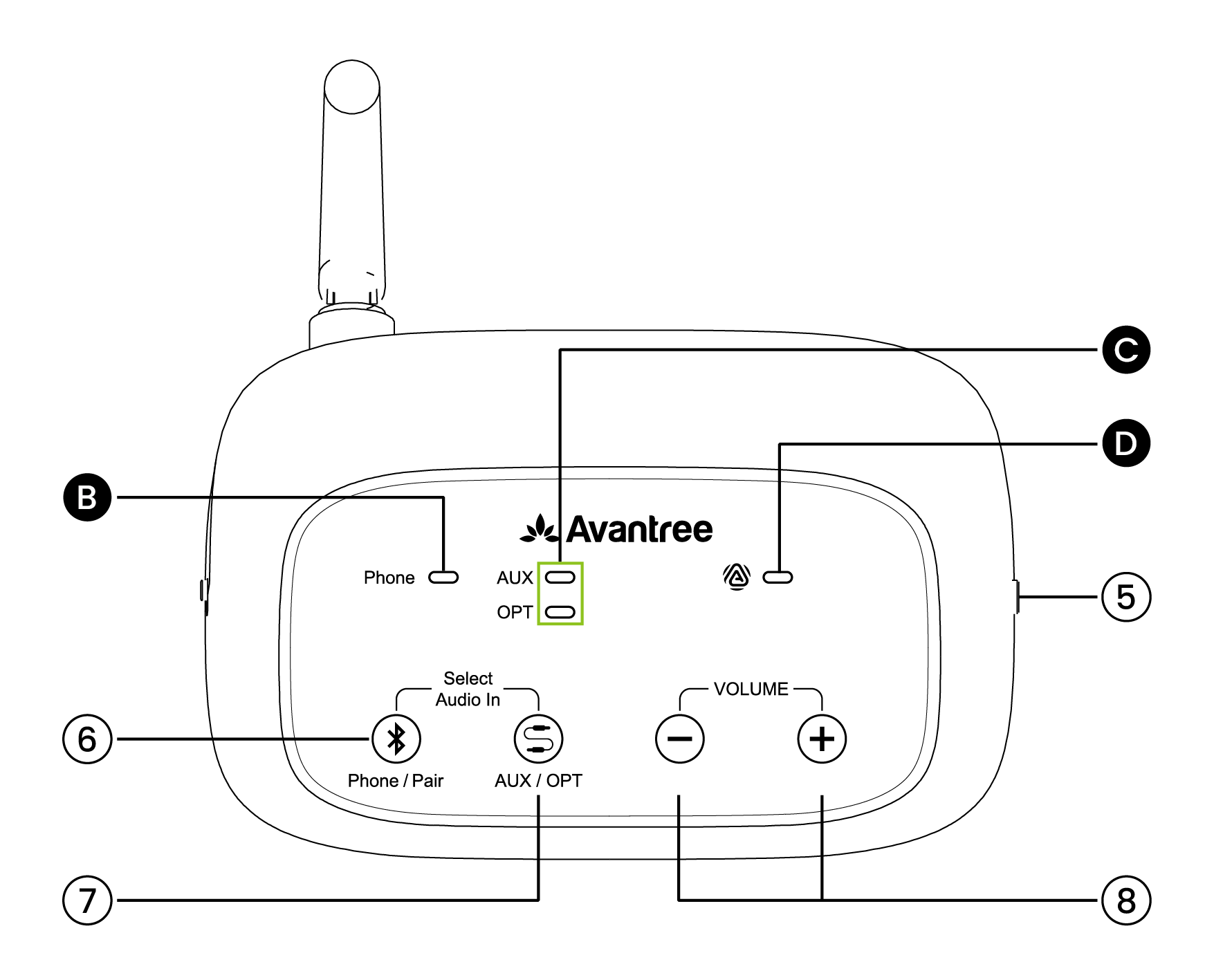

Transmitter
Button Functions
| No. | Button | Function |
| ⑤ | ON / OFF | Slide to turn the transmitter ON / OFF |
| ⑥ | Phone / Pair | - Press to select Phone input - Press & hold for 4 seconds to enter Bluetooth pairing mode (Phone mode only) |
| ⑦ | AUX / OPT | Press to toggle between AUX and OPT inputs |
| ⑧ | + / – | Press or hold to adjust the volume Press & hold both buttons for 10 seconds to clear pairing history |
LED Indicators
| No. | Indicator | Meaning |
| B | Solid blue | Connected |
| Flashing red & blue | Pairing mode | |
| C | Flashing red | Current sound mode is in use |
| Solid white | Audio input is detected | |
| D | Solid orange | Auracast Broadcasting (Auracast mode active) |
⚠️Important Note:
When using your Avantree transmitter with a TV in Optical or HDMI ARC mode, it is essential to set your TV’s Digital Output Audio Format to PCM (Pulse-Code Modulation) to avoid audio issues. Find out more here.
