Ensemble – How to Add a Second Pair of Headphones

Step 1. Turn the TV OFF (Smart TV streaming service affect pairing)

Step 2. Turn on the Ensemble Set

2.1. Power ON the transmitter.

2.2. Power ON the headphone.

2.3. Wait for them to re-connect. The LED indicator on the headphone and the transmitter will both turn SOLID BLUE.

Step 3. Pair the transmitter with the 2nd Headphone

3.1. Get your 2nd pair of AS50 Headphones into Bluetooth Pairing Mode.

Turn on your second pair of AS50 headphones, then press & hold the button until the LED indicator flashes RED & BLUE. (For batches before T22J1, hold the power switch to the "Bluetooth icon" for 5 seconds; the LED indicator will start flashing RED & BLUE.

Note:

For Avantree headphones, the LED flashes RED & BLUE under the pairing mode. You should also hear a "Pairing" voice prompt from the headphones.

Non-Avantree Headphones: Look it up by Brand or google it. For example, search “Sony XM4 Bluetooth Pairing mode” and you will find “To pair a second or subsequent device, press and hold the (power) button of the headset for 7 seconds or more to enter pairing mode.

3.2. Get the Transmitter into Bluetooth Pairing Mode.

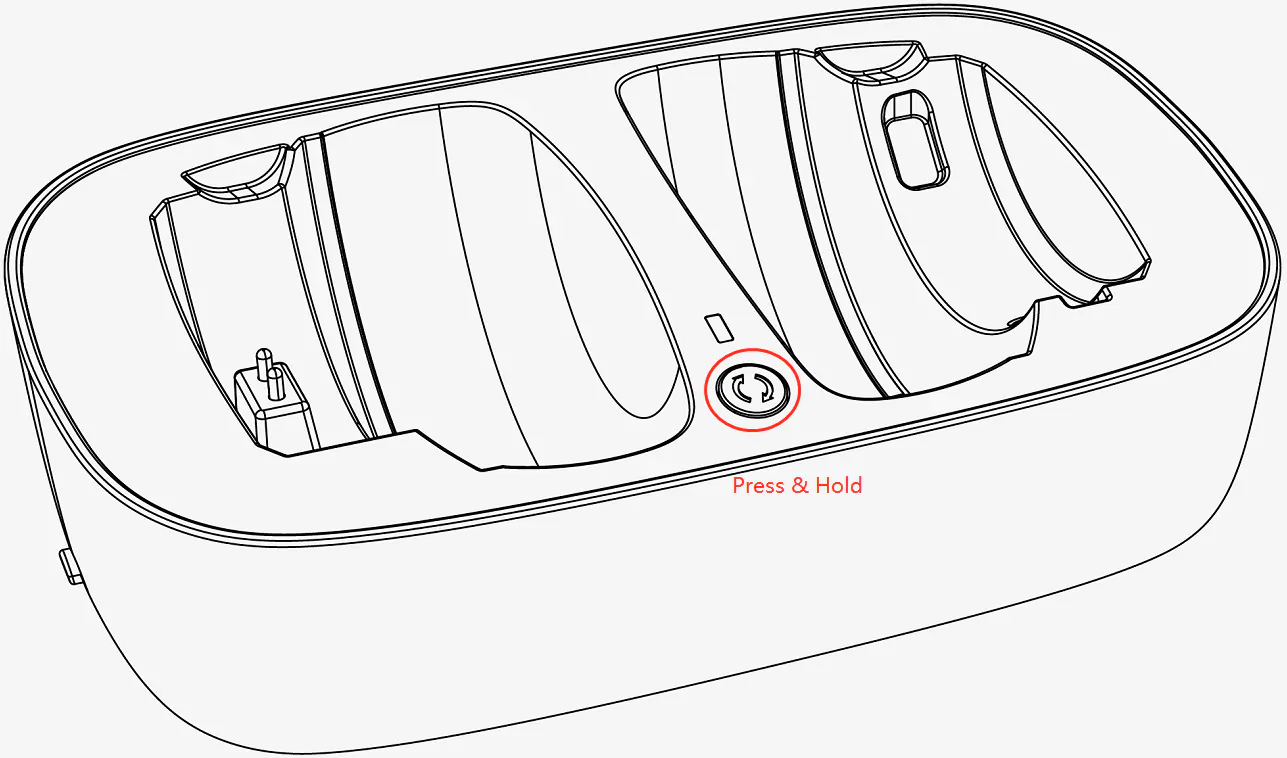

 Press & Hold the MFB button for 5s until you see the LED indicator flashing RED & BLUE.

3.3. Put them close to each other and WAIT for them to pair & connect.

Once connected, the LED indicator on the transmitter will turn SOLID BLUE again.

Step 4. Reconnect during Future Use:

4.1. Turn on the transmitter and AS50 headphones. Wait for them to connect first.

4.2. Then turn on the 2nd  headphones. Wait for 5-10 sec and they will re-connect.

(If not, click the MFB button on the 2nd headphone and Wait for 5-10 seconds. They should re-connect.)
