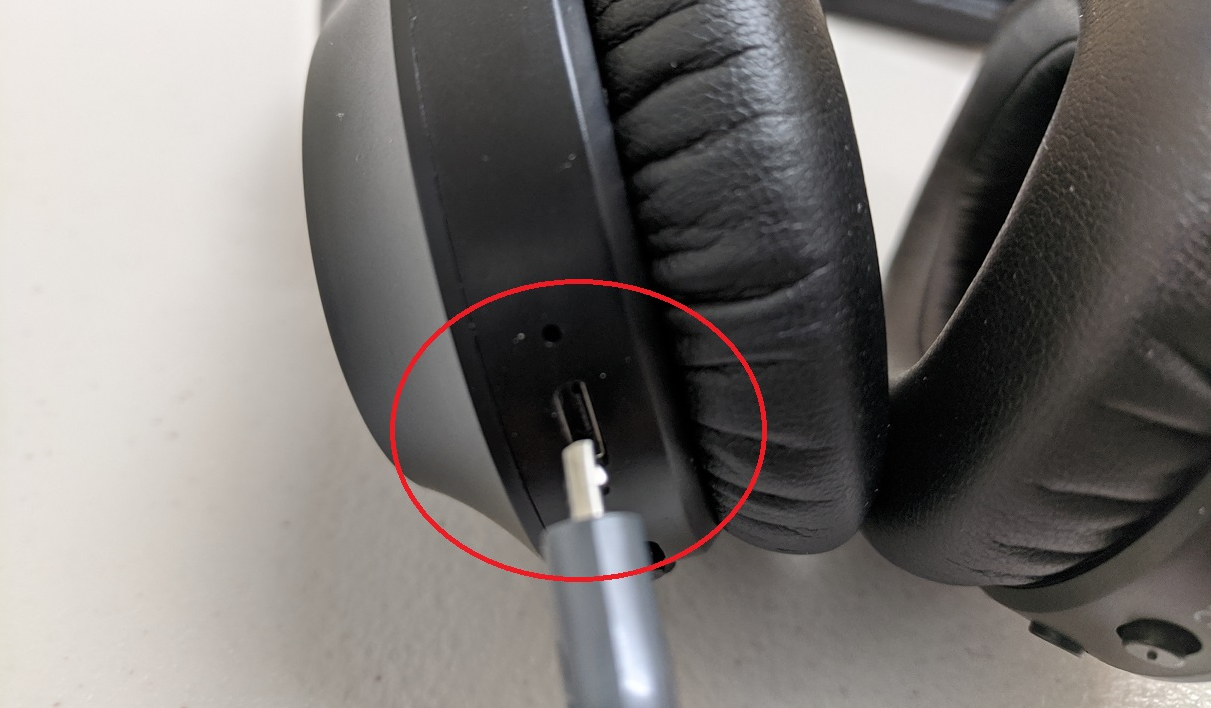

Charging methods: 1.Using the Charging Cable: Insert provided USB / Type C cable

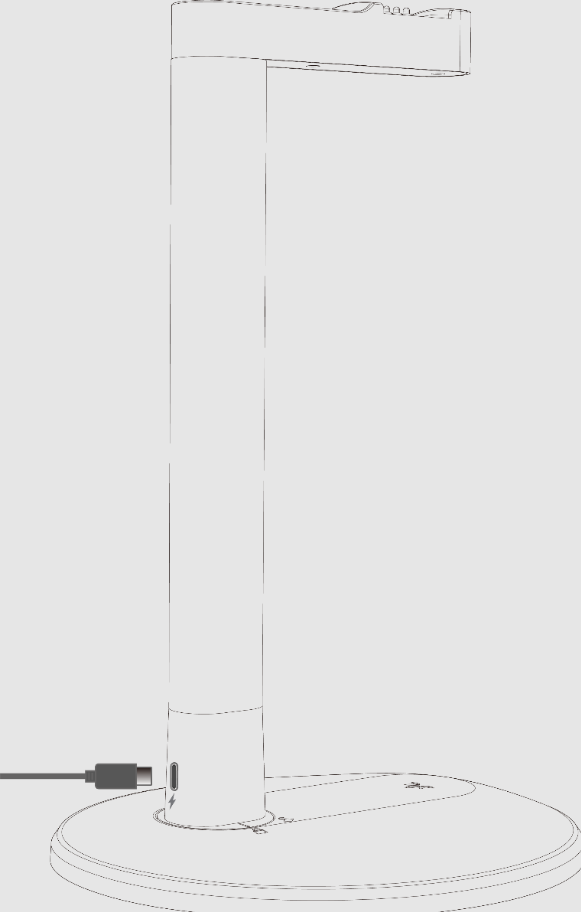

2. Using the Desktop Charging Stand: Step 1): Make sure the stand is plugged in. You must plug the desktop charging stand in with the provided micro USB cable. The port is on the backside of the stand.
Step 2): Insert the headphones. Place the headphones on the stand as directed in the image below. Make sure that the charging pins are firmly inserted into the port entirely.

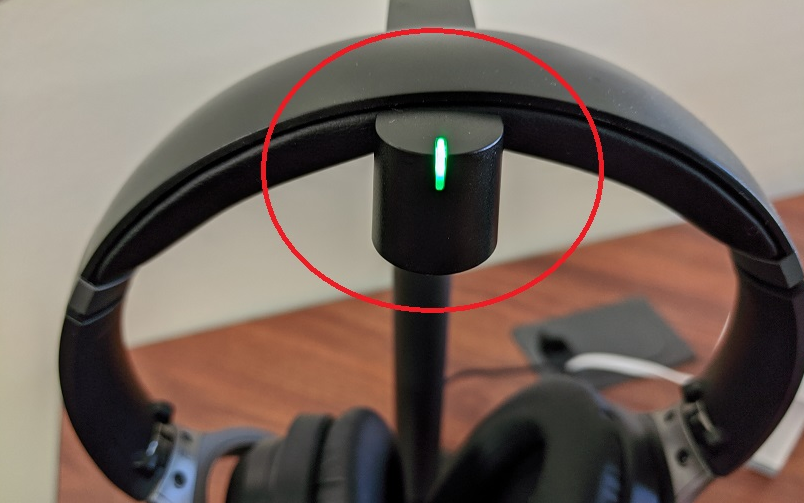

The LED indicator on the charging stand will remain WHITE while charging and turn to GREEN when charging is complete.
Low battery – Voice propmt warning "Low battery" when 30% capacity of the power is left, red LED light flashes once every 10s.
Suggested power source specification: 5V /0.5-1A
Fully charge time – 2H
Used time after fully charged – 24H (ANC Off); 15H (ANC On)
Standby time – Around 35 days (ANC Off)
Indicators
Charging - LED on the headphone turns RED
Fully charged - LED on headphone turns OFF
Power On / Off

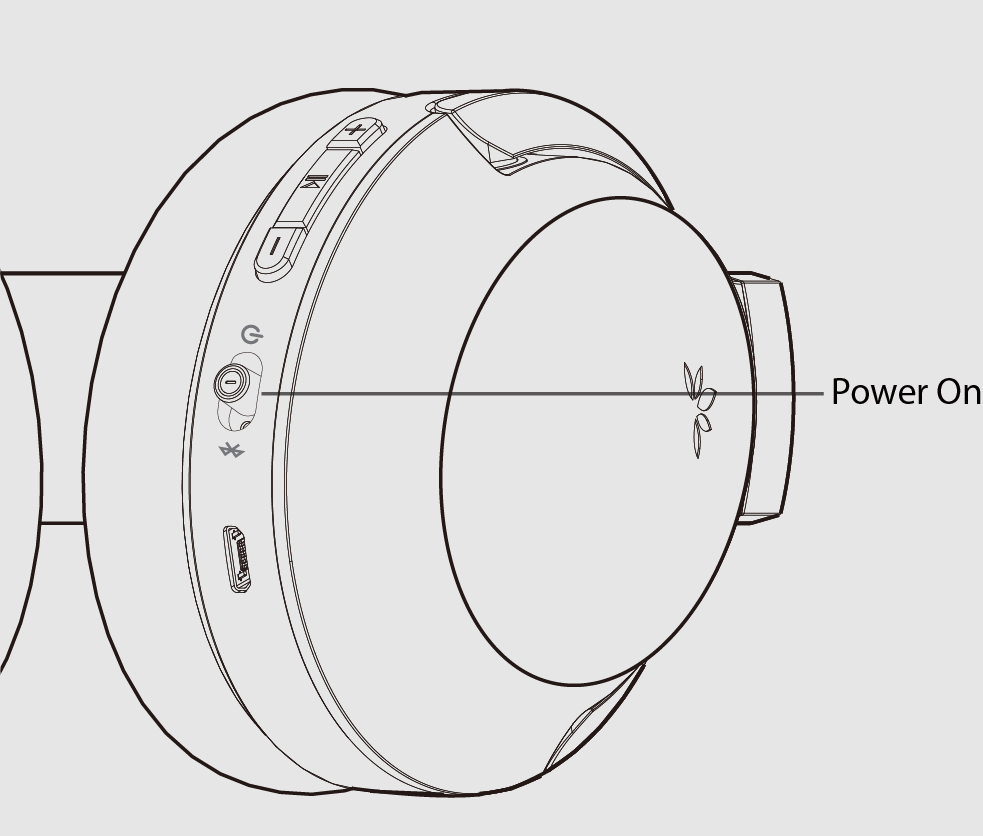

Power On: Slide the power switch to the middle position

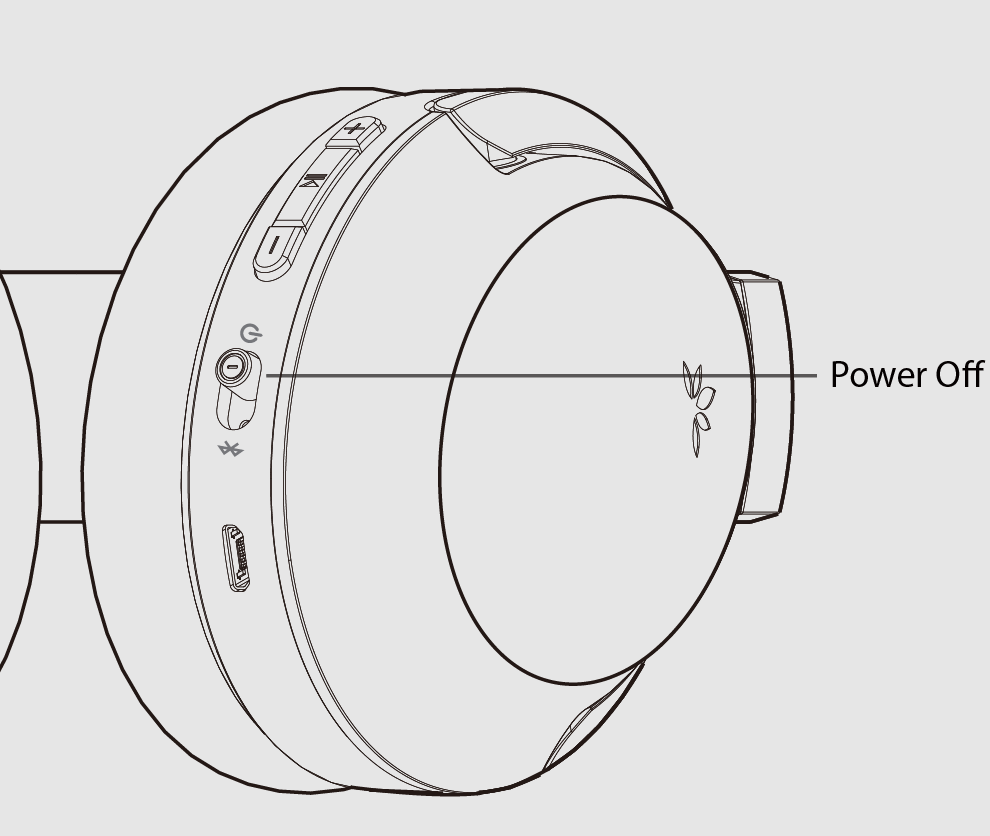

Power Off Manually: Slide the power switch to the power icon side
Power Off Automatically: 10 minutes after disconnected with sound source device
Note: 1. Headphones with lot / batch number before 20F1 like 20D1, are with USB charging ports and cables; later batches (20F1 included) like 20H1, are with Type C charging ports and cables. 2. You CAN NOT use the headset while it is being charged since it will power off automatically. Please restart the headphones to use after charging is complete. 3. If you can hear the voice prompt say "Low battery, please turn off and charge" or see the LEDblinkingRED, you will need to charge your headphones.
